HI-TAK® TufSeal® (HT3000 and HT3000FR)

TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000
TufSeal HT3000

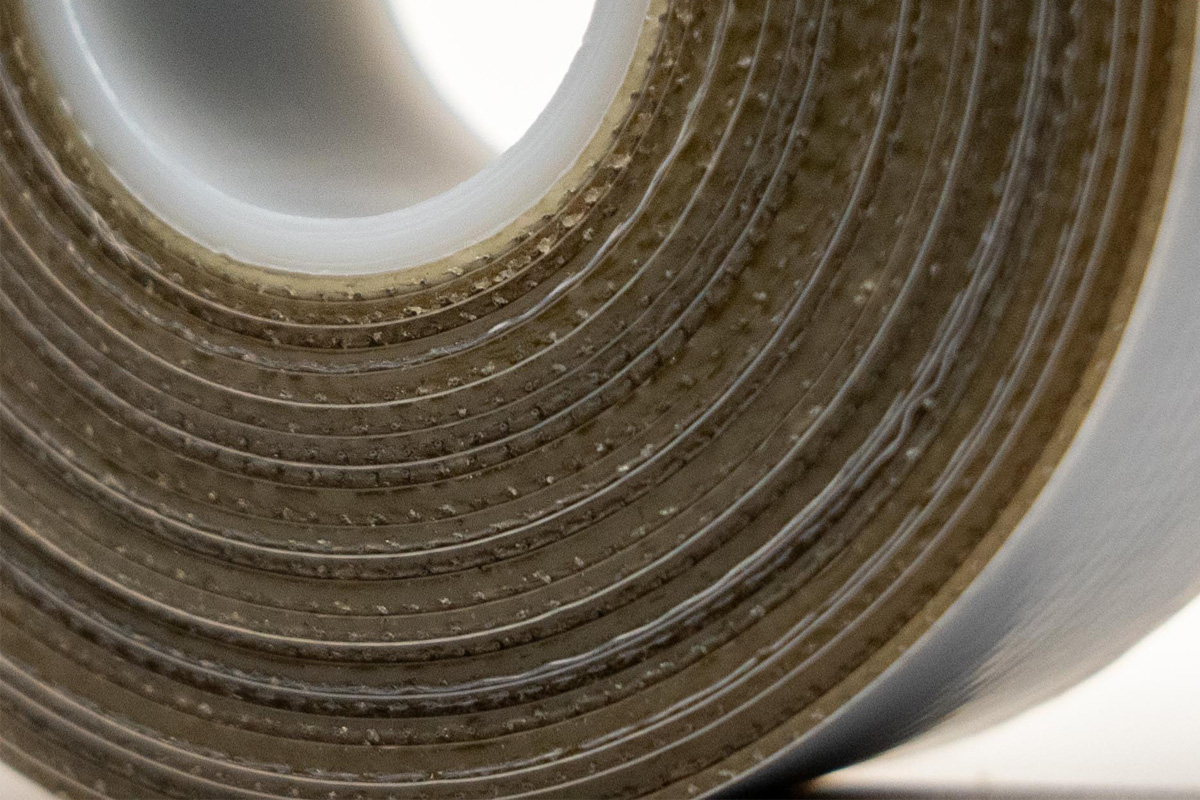

Single-Sided Tacky PRS

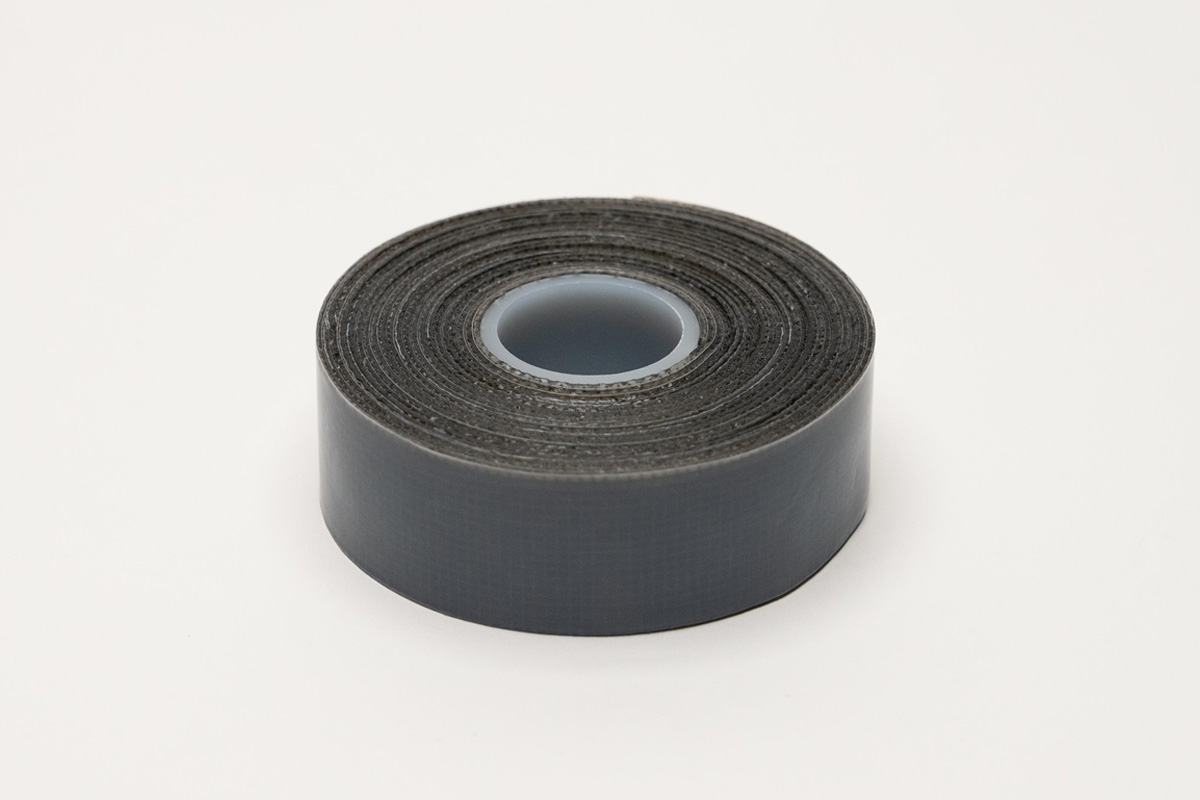

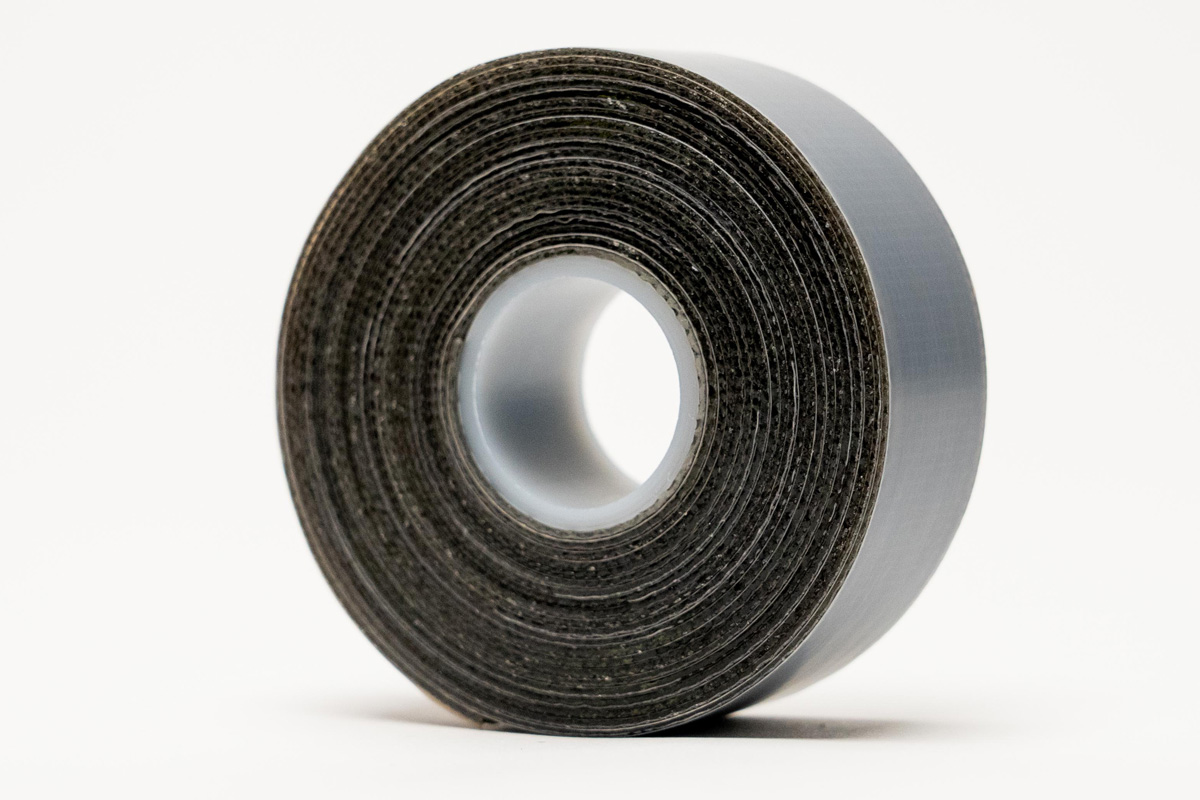

  • Single-sided tacky PRS with an integrated fiberglass carrier that is specially designed to seal and moisture-proof irregular surfaces where electrical bonding is not required

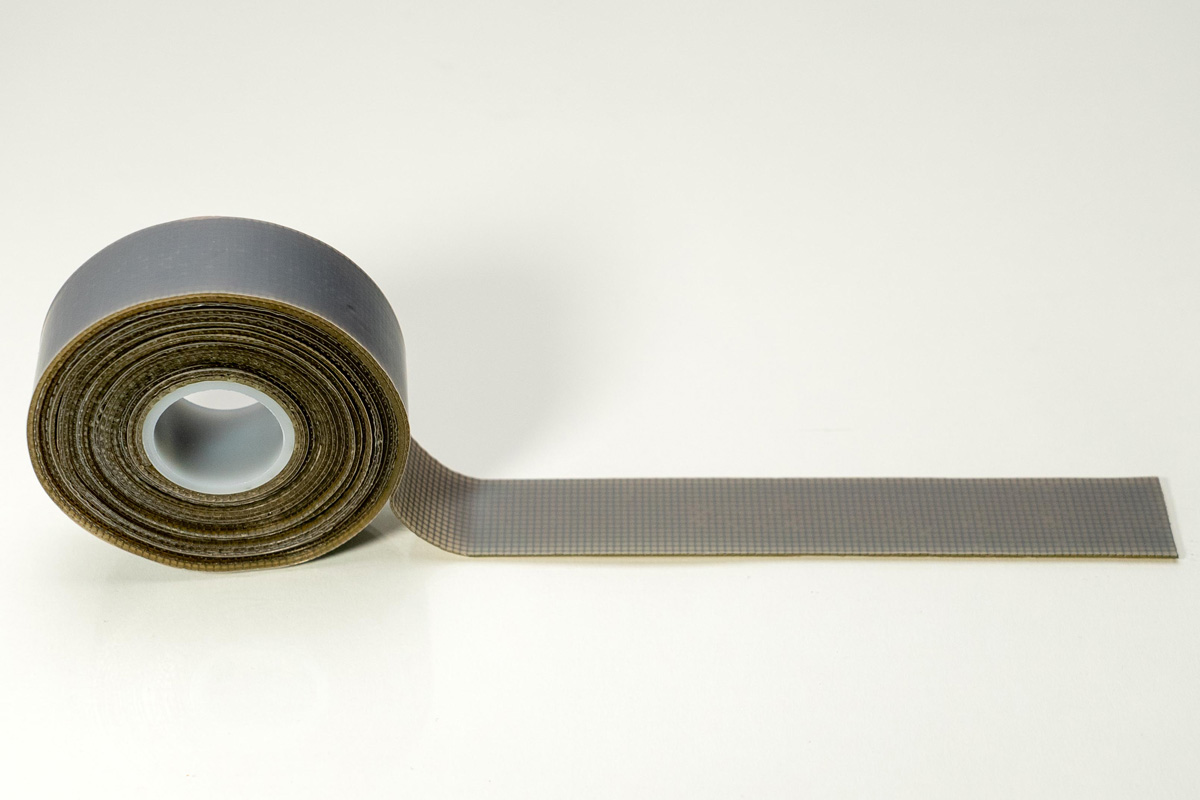

  • Product comes in roll form and is easily applied to the aircraft structure. No need for any special installation equipment or tooling
  • PTFE backing on one side provides additional abrasion resistance and eases panel placement and removal
  • Peels off in large strips, minimizing time spent removing sealant
  • Stops moisture ingress to keep aircraft structure from corroding, slashing costly, labor-intensive corrosion-related repairs

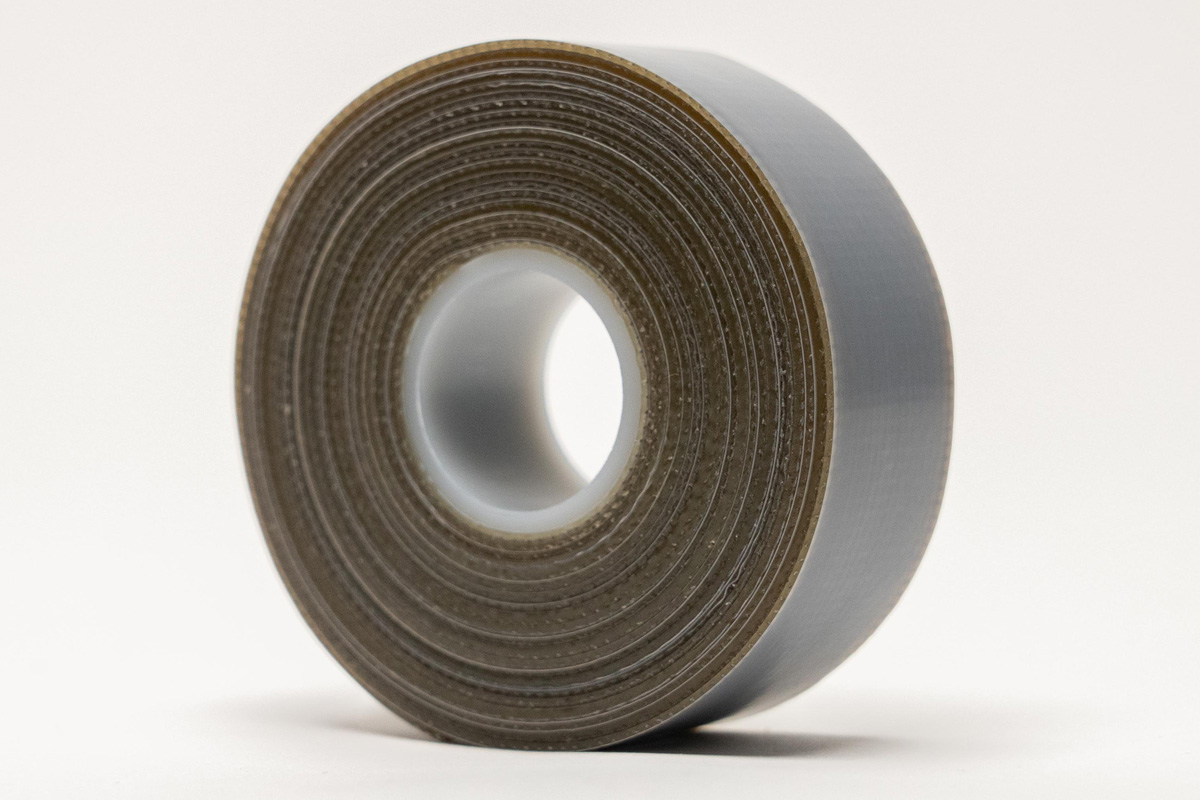

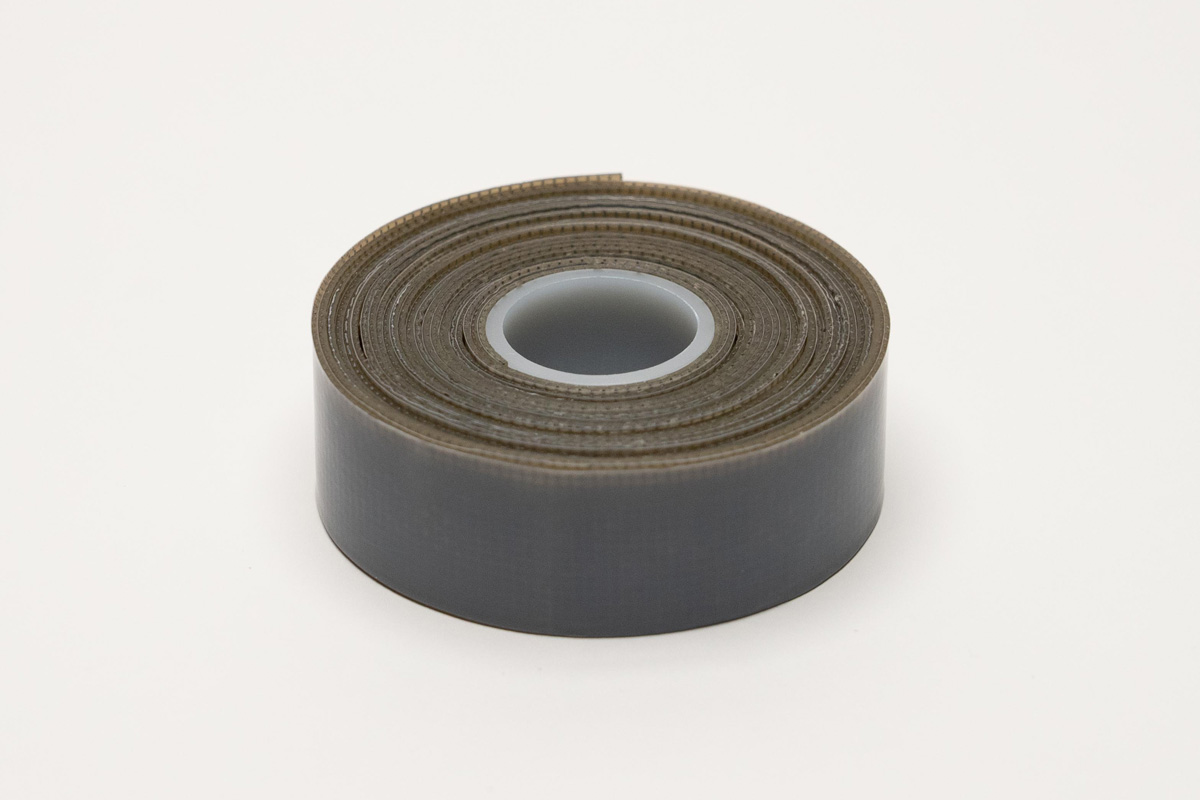

  • FR formulation passes 12-second Vertical Burn Test per 14 CFR, PART 25-Subpart D, § 25.853 Compartment interiors & § 25.855 Cargo or baggage compartments Appendix F, Part I, (a)(1)(ii) (12 sec vertical test)

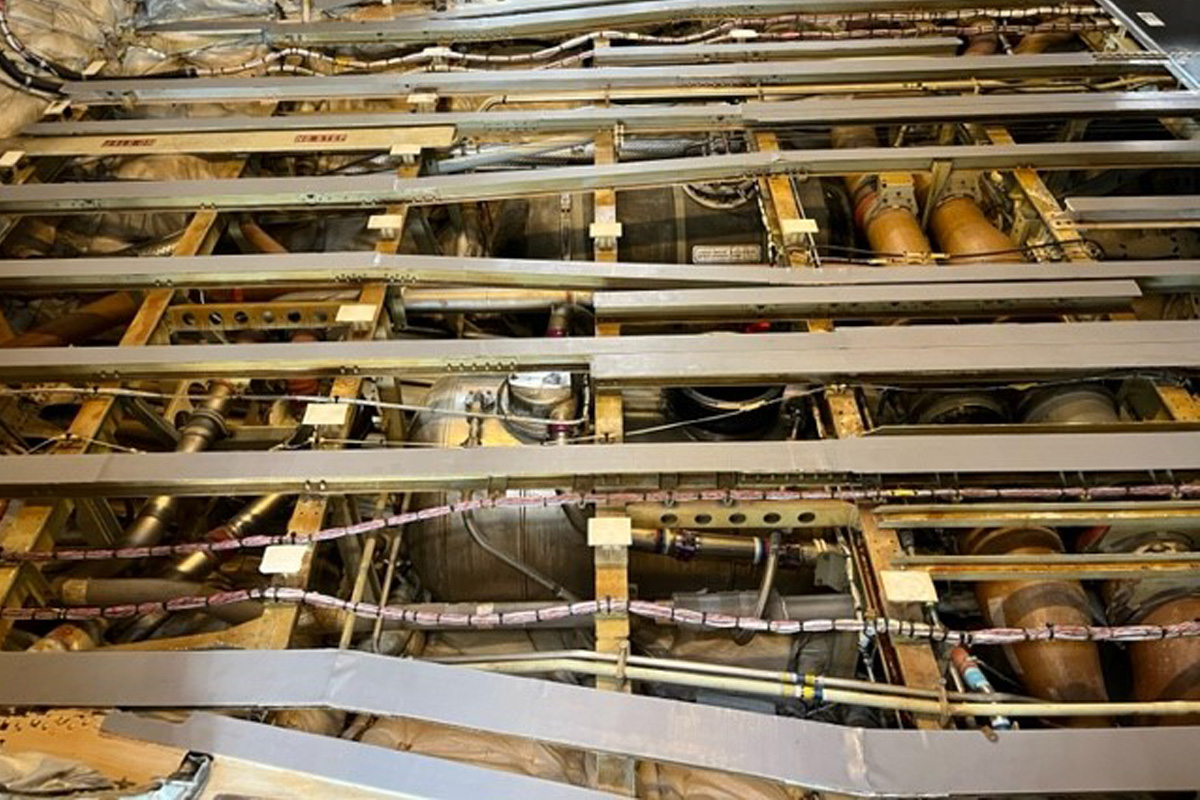

COMMON USES: • Under Floorboards on Stringers • Under Lavatories and Galleys • Under Door Sills • Panel Sealing

Product Specifications

Rolled Sealants
Hi-TAK TufSeal
Part Number Series
HT3000-XXX
Color
Gray
Thickness (as supplied)
0.045 in (1.14mm)
Length (as supplied)
12 ft (3.66 m)
Standard widths available in 0.050 inch increments up to 24 inches
ex: 1.5 inch width = HT3000-150
Shelf Life, sealed container
Indefinite (in original packaging and protected from UV exposure)
Reactivity, to typical aviation metallic and non-metallic surfaces
None - Product supplied fully cured
Service temperature guide per RTCA DO-160G, Section 5, 2 cycles
-85°F to 275°F (-65°C to 135°C)

PDF Documents to Download, View & Print

HI-TAK TufSeal HT3000 Installation Video

National Stock Numbers (NSN)

Av-DEC P/N
Av-DEC NSN
Description
Application
Category
HT3000-075
5330-01-513-0827
.75" x 12' Roll
All Air Frames
HI-TAK TAPE TufSeal
HT3000-100
5330-01-514-8772
1.0" x 12' Roll
All Air Frames
HI-TAK TAPE TufSeal
HT3000-125
5330-01-550-6988
1.25" x 12' Roll
All Air Frames
HI-TAK TAPE TufSeal
HT3000-150
5330-01-513-0861
1.5" x 12' Roll
All Air Frames
HI-TAK TAPE TufSeal
HT3000-175
5330-01-550-9476
1.75" x 12' Roll
All Air Frames
HI-TAK TAPE TufSeal
HT3000-200
5330-01-513-0876
2.0" x 12' Roll
All Air Frames
HI-TAK TAPE TufSeal
HT3000-250
5330-01-513-0887
2.5" x 12' Roll
All Air Frames
HI-TAK TAPE TufSeal
HT3000-300
5330-01-513-0832
3.0" x 12' Roll
All Air Frames
HI-TAK TAPE TufSeal
HT3000-400
5330-01-513-0842
4.0" x 12' Roll
All Air Frames
HI-TAK TAPE TufSeal
HT3000HR-100
5330-01-617-7465
HT3000RT-100
5330-01-542-5842
1.0" x 12' Roll
All Air Frames
Thin HI-TAK TAPE TufSeal
HT3000RT-150
5330-01-542-5788
1.5" x 12' Roll
All Air Frames
Thin HI-TAK TAPE TufSeal
HT3000RT-200
5330-01-542-5812
2.0" x 12' Roll
All Air Frames
Thin HI-TAK TAPE TufSeal
HT3000RT-250
5330-01-542-5819
2.5" x 12' Roll
All Air Frames
Thin HI-TAK TAPE TufSeal
HT3000RT-300
5330-01-542-5854
3.0" x 12' Roll
All Air Frames
Thin HI-TAK TAPE TufSeal

A pre-cured polyurethane rolled sealant (PRS) with a fiberglass carrier for corrosion prevention on aircraft structures used in extreme conditions.

The operational performance and safety of an aircraft can be heavily impacted by the ability to create a complete seal against moisture and corrosion. HI-TAK TufSeal polyurethane rolled sealant (PRS) creates a complete protective seal against corrosion for certain components and irregular surfaces on an aircraft. The product exhibits excellent sealing and enhanced resistance to vibrations when applied. For this reason, it is used as a permanent sealing solution by original equipment manufacturers as well as maintenance and repair service organizations worldwide.

HI-TAK TufSeal is a single-sided PRS, meaning it is tacky on only one side and easy to install in diverse conditions. The product is a pre-cured PRS and is applied without the need for a bonding agent. This, in turn, makes it easy to remove when scheduled inspections come due. Users can count on the product leaving behind no residue that may affect paint adhesion or emit hazardous substances. The choice of a spool of HI-TAK TufSeal for your sealing challenges offers the following benefits:

  • An apply-and-fly installation process that allows for a quick seal to avoid extended downtime.
  • A durable sealant that stays in its application position and perimeter under compression and vibration with minimal squeeze-out and no loss of adhesion.
  • An easy application and removal process which does not require the use of any special equipment.
  • High resistance to abrasion and external pressure, thus increasing protection for the aircraft's surface, frame, and structures.
  • A complete protective seal after application which keeps out moisture and corrosion on aircraft operating under extreme conditions for long durations.

Scientifically Engineered to Prevent Moisture Ingress and Corrosion

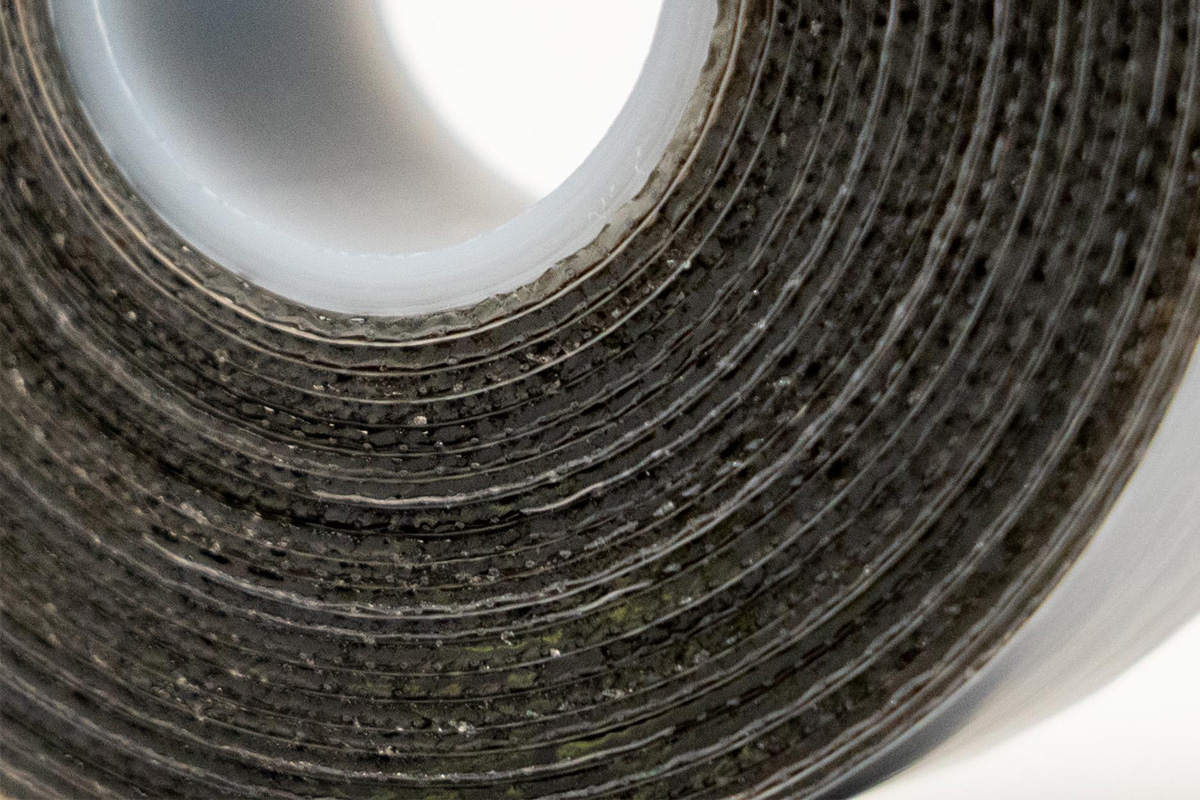

HI-TAK TufSeal is the result of years of deliberate corrosion-prevention research by the engineers at Av-DEC. The end product is a single-sided PRS solution made from polyurethane with a fiberglass carrier integrated into the sealant. The product is composed of a tacky surface on one side, and polytetrafluoroethylene (PTFE) on the other side. The PTFE backing is non-tacky, making the HI-TAK TufSeal the best solution to use in areas where extensive maneuverability is needed during application.

The product is pre-cured and can also be die-cut to serve as a gasket system if the need arises. This flame-retardant version of HI-TAK TufSeal is for use in areas where flame retardant properties are needed. Other benefits gained from its excellent engineering include:

  • A durable and reliable sealing solution which reduces repair and part replacement costs to the bare minimum.
  • The option of using it in roll form or as a die-cut sealant to create a complete barrier against moisture on a variety of surfaces.
  • Its pre-cured nature means no additional adhesive or solvent is needed for installation, speeding up the installation process and eliminating liquid mess.

Designed Specifically for Quick Installation

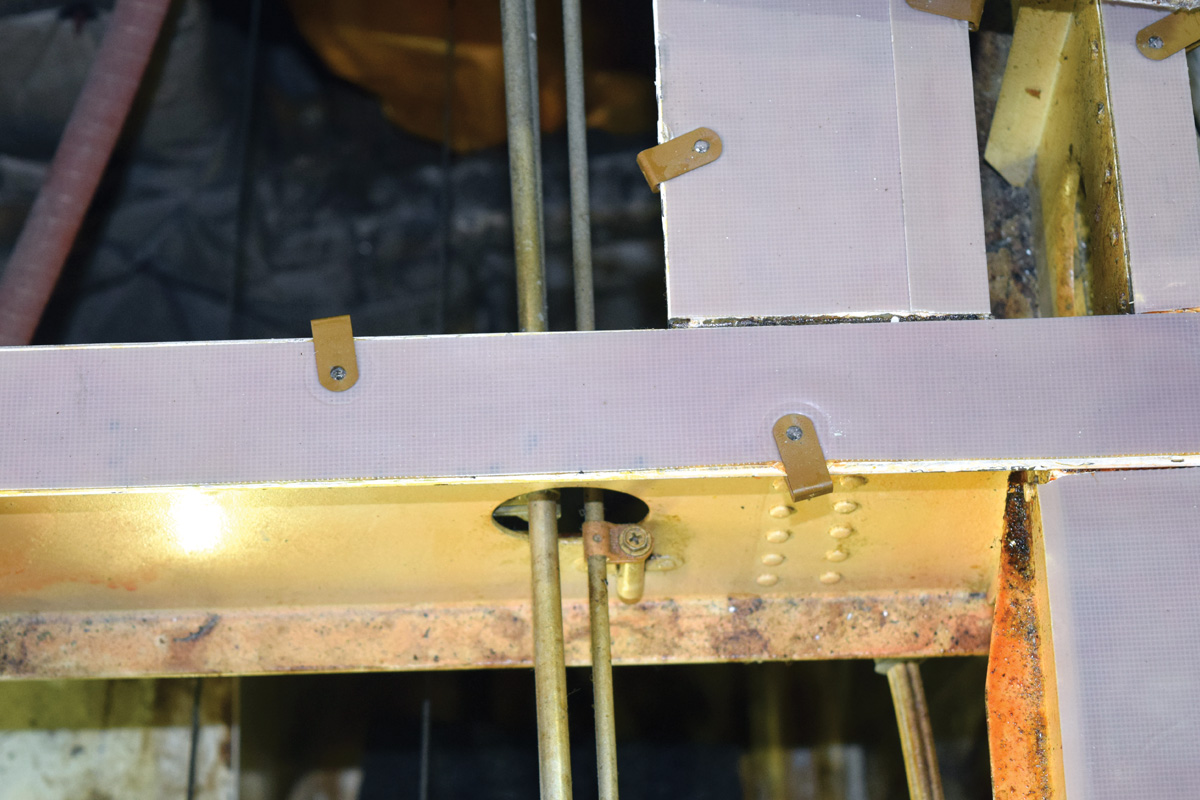

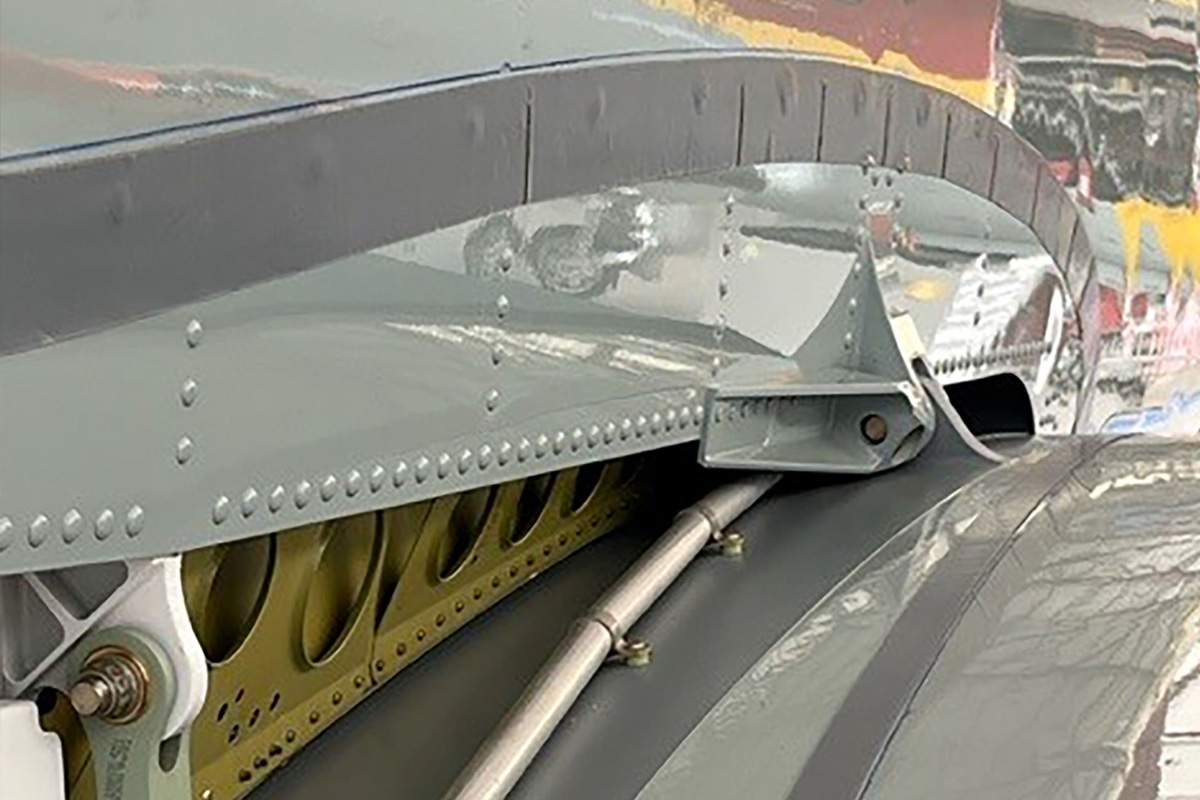

The PTFE backing of HI-TAK TufSeal is a result of the PRS being designed for single-sided applications. This, alongside its polyurethane material is why it make a perfect material in high-traffic areas, to protect irregular surfaces where abrasion may occur, and where there is a need to repeatedly reposition panels. Among others, users can use HI-TAK TufSeal to provide a total protective seal on the following areas and components:

  • Access panels
  • Under floorboards
  • Under lavatories
  • Under galleys
  • As door seals
  • Stringers
