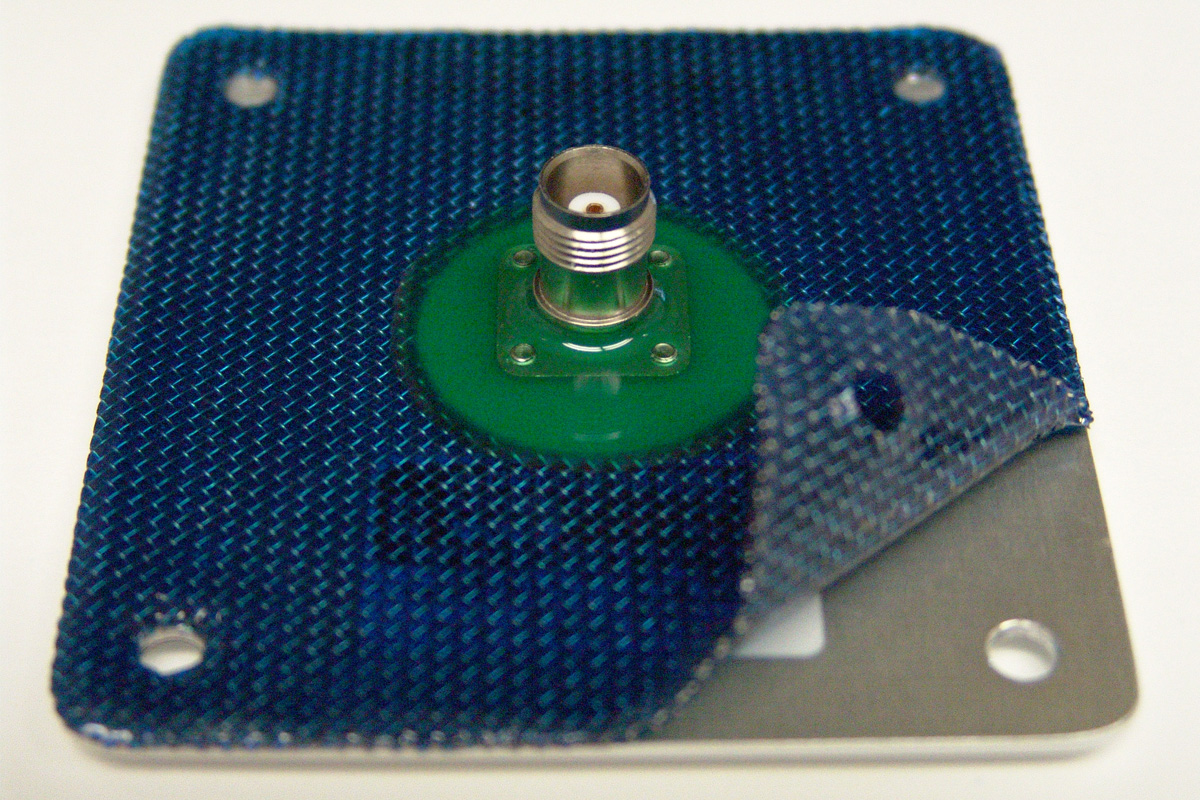

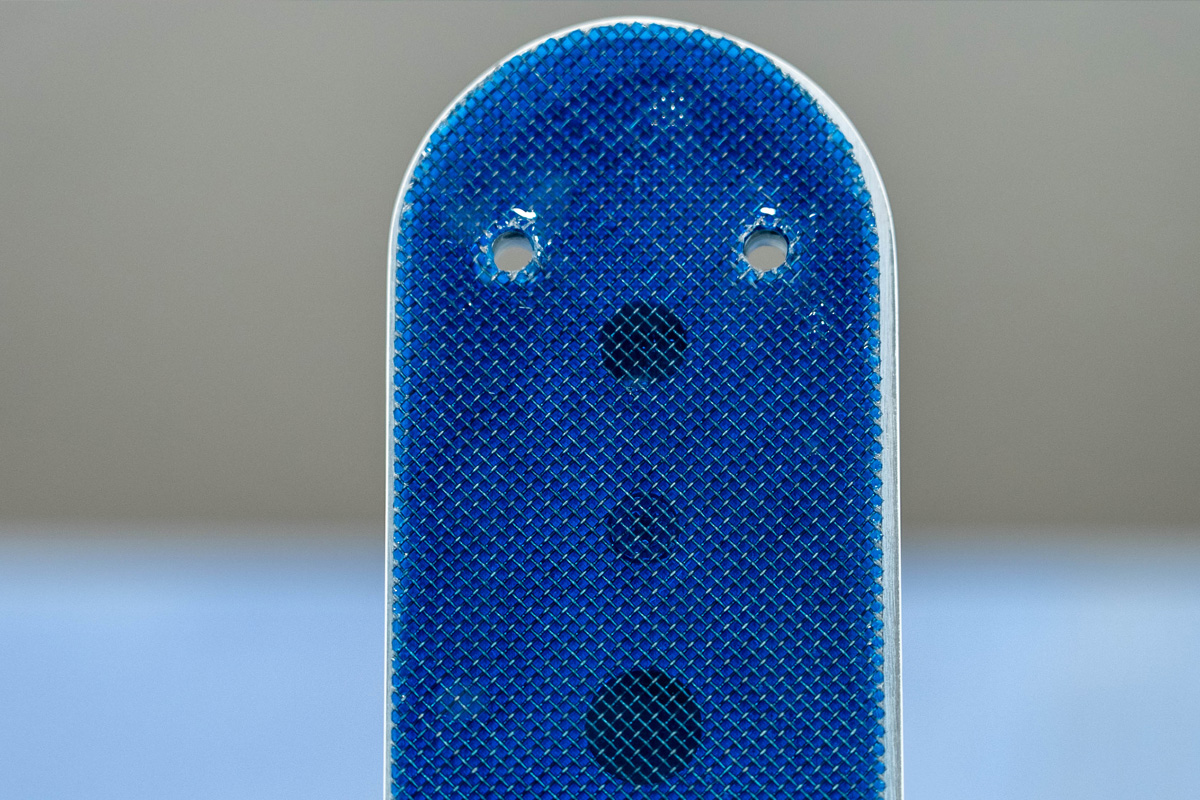

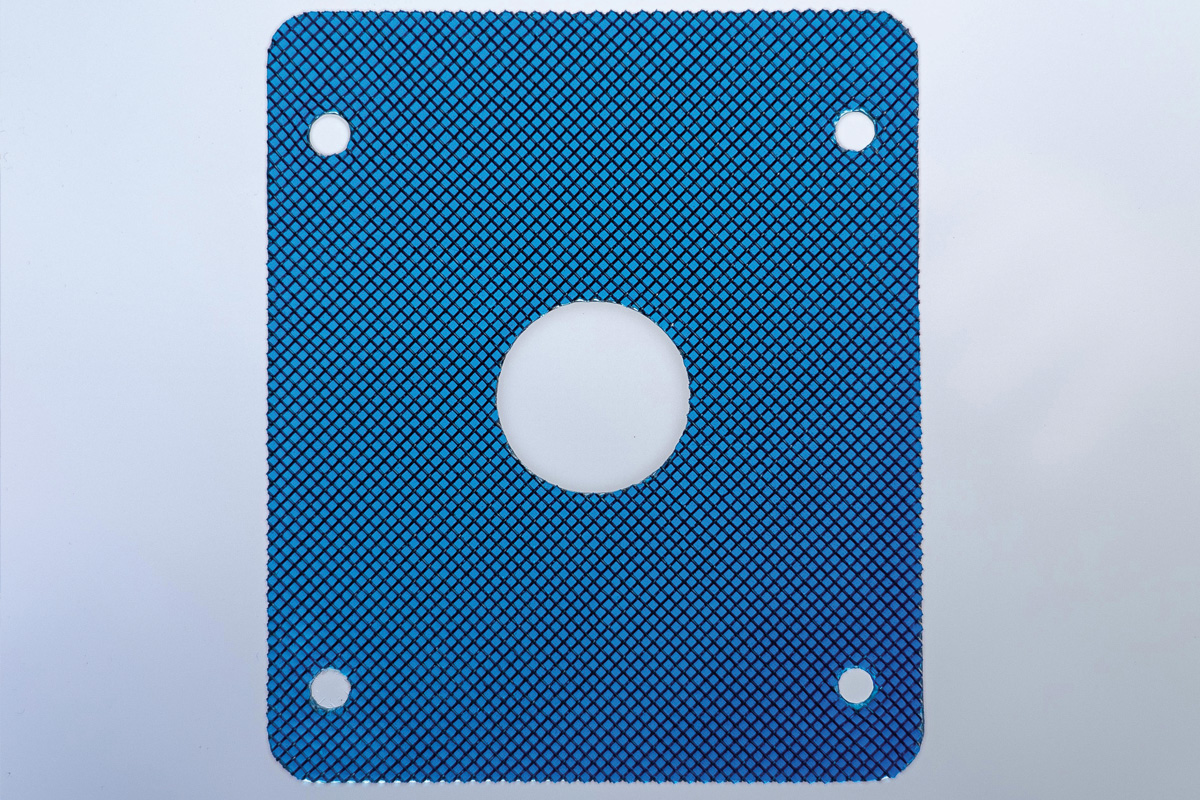

Conductive Blue Antenna Gasket
Blue conductive antenna gasket
Blue conductive antenna gasket
Blue conductive antenna gasket

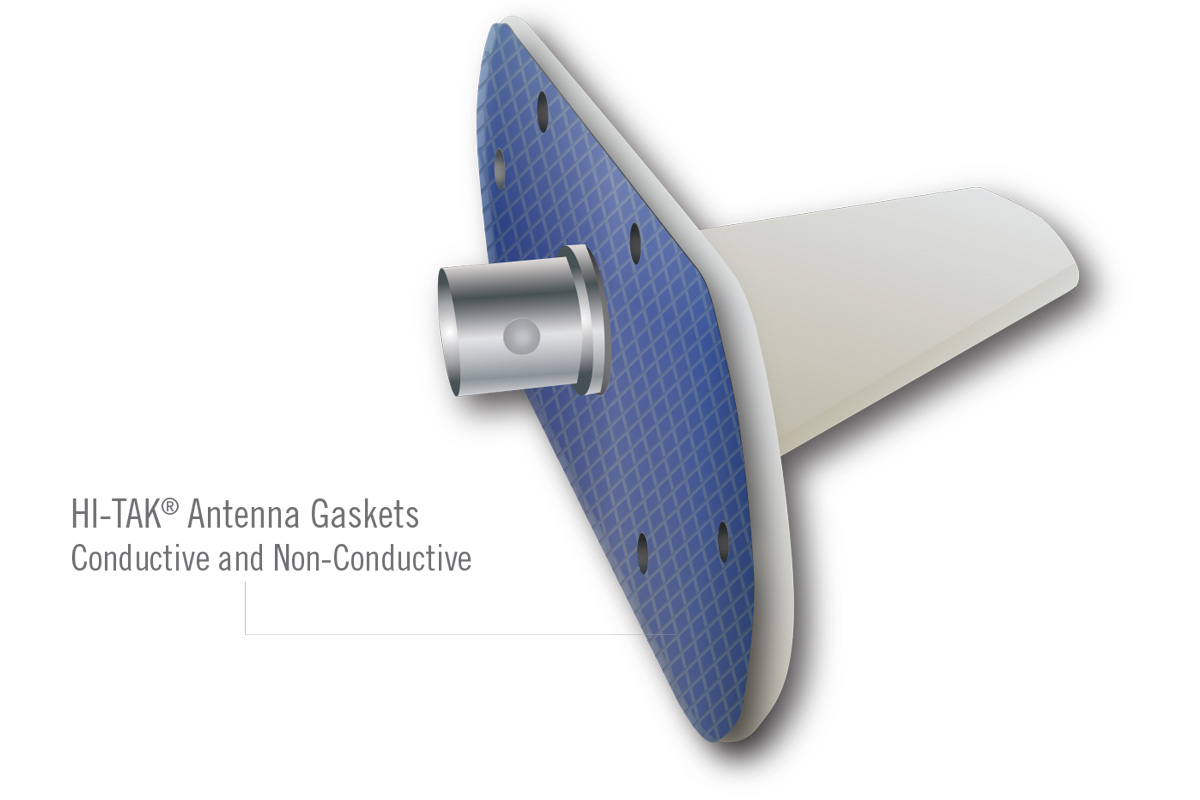

HI-TAK Antenna Gaskets
HI-TAK Antenna Gasket

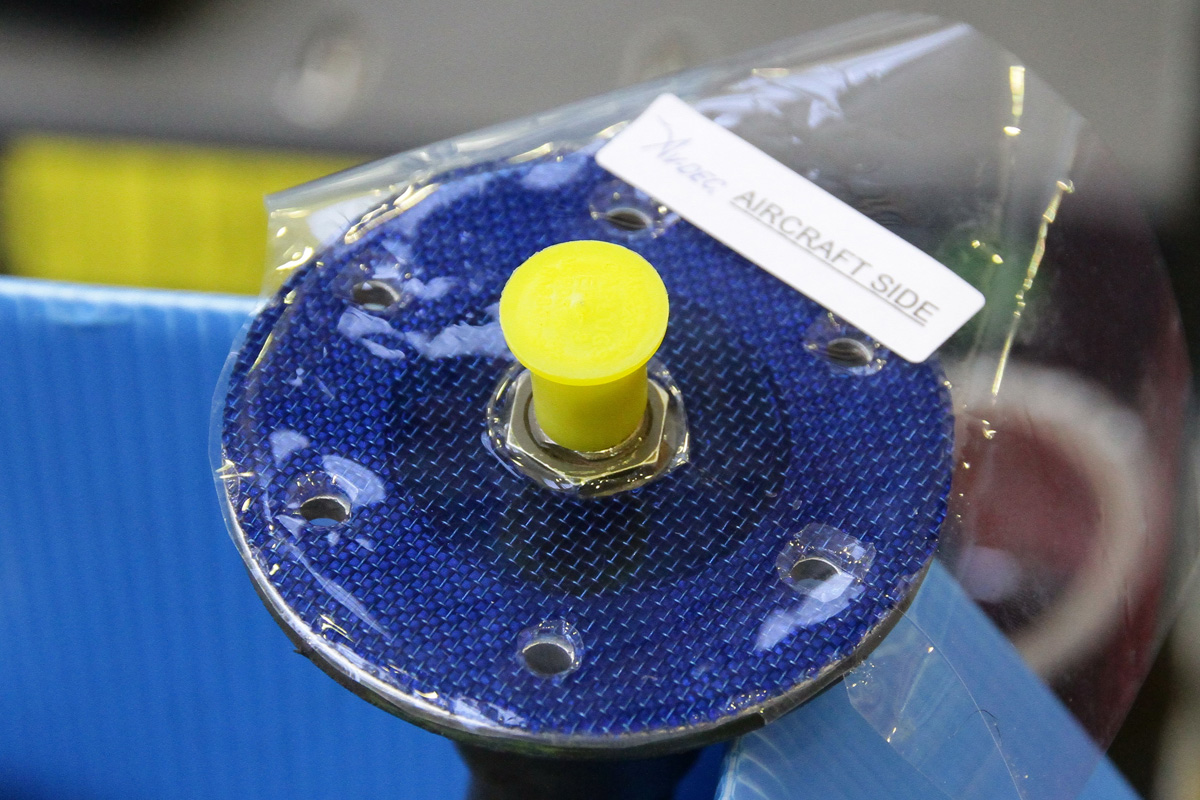

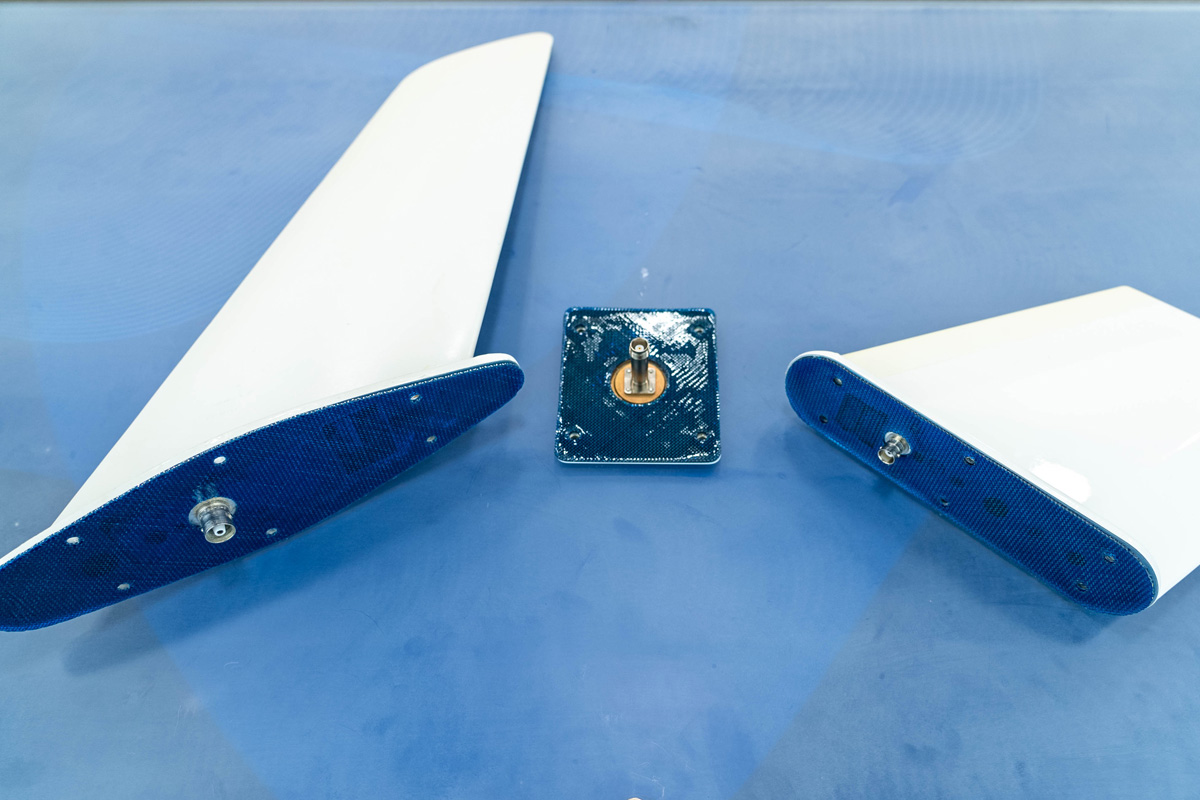

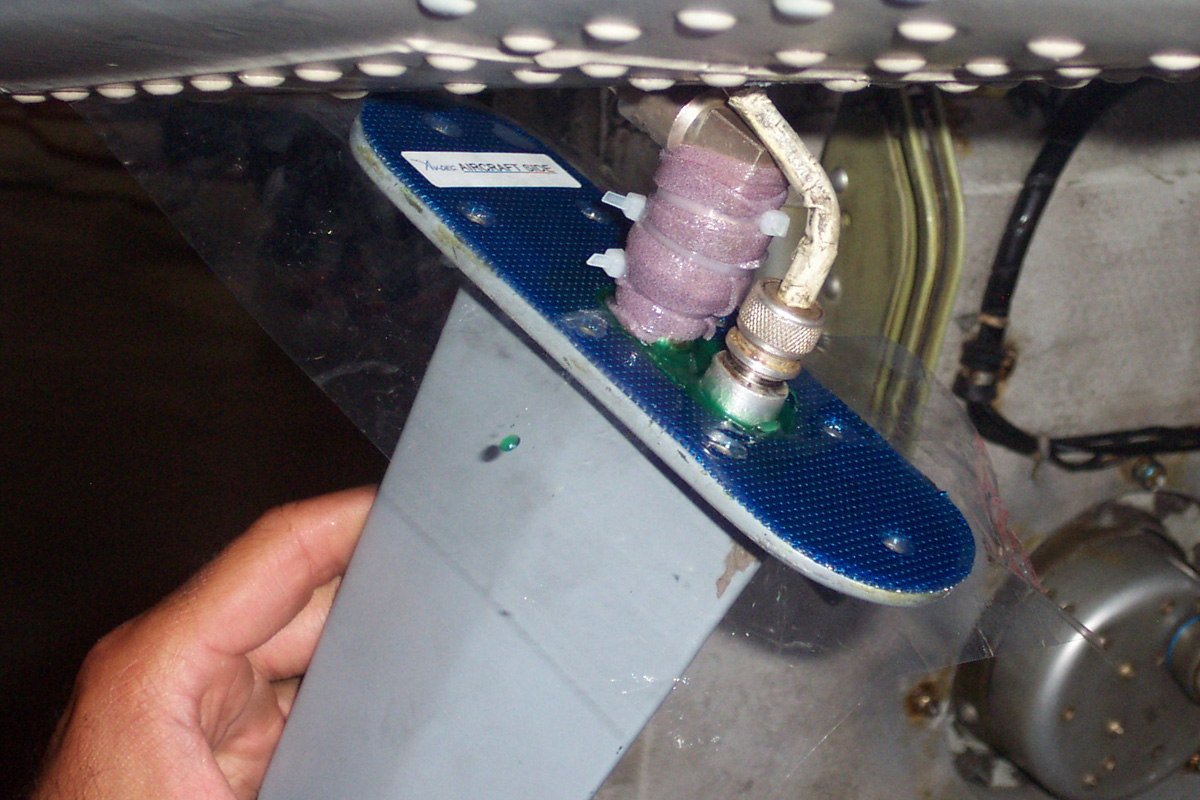

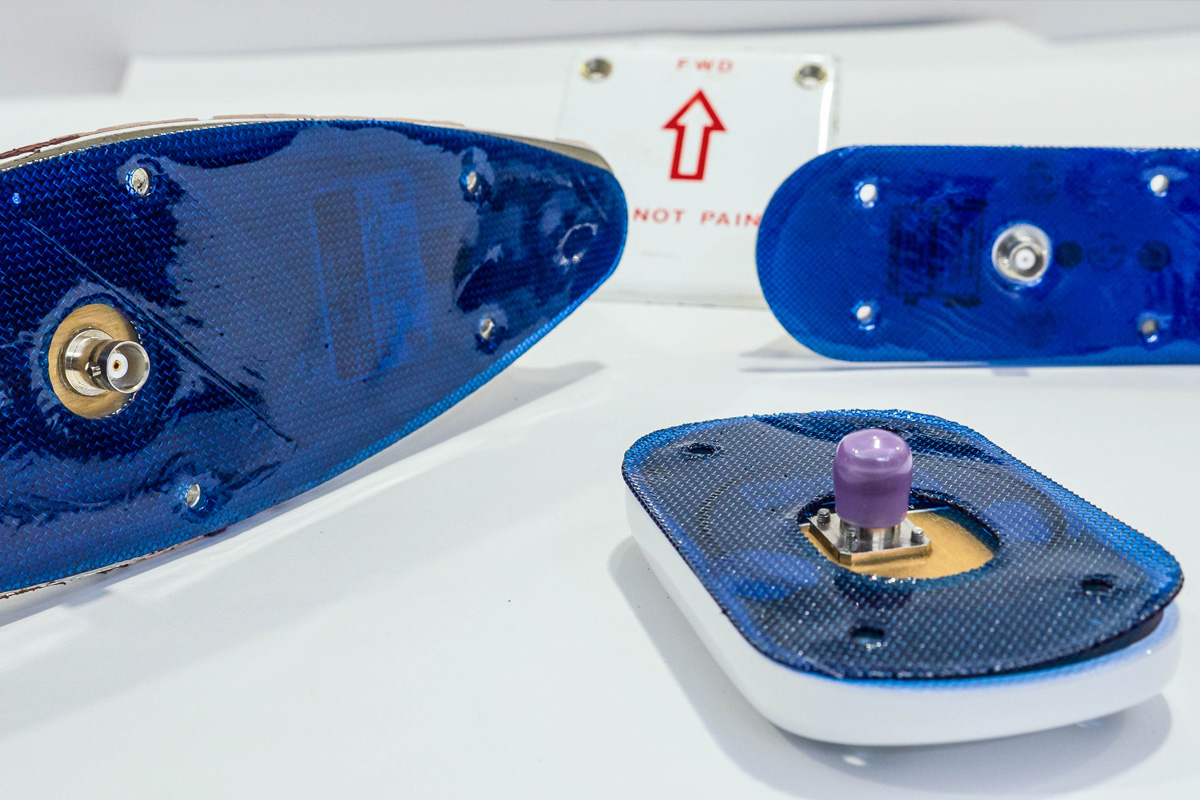

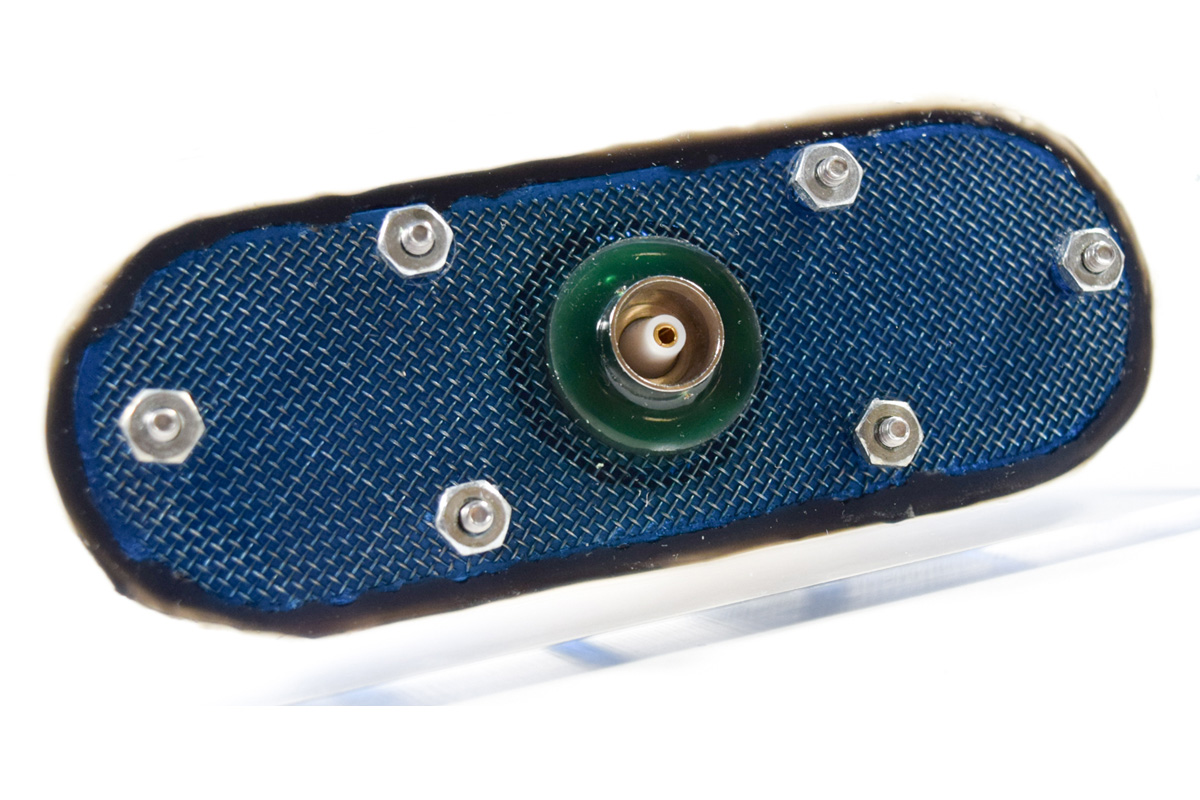

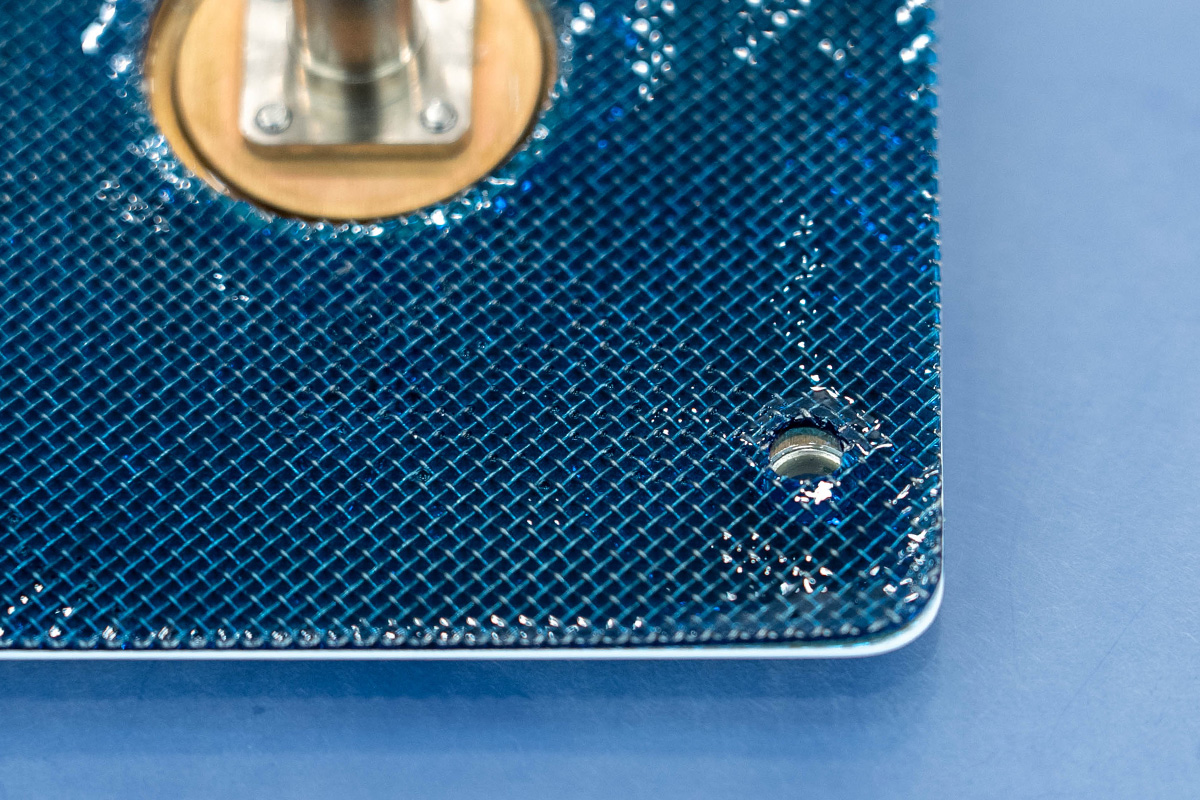

Antenna Gasket installed on antenna
Antenna gasket installed on antenna
HI-TAK Antenna Gasket
HI-TAK Antenna Gasket
HI-TAK Antenna Gasket
HI-TAK Antenna Gasket
HI-TAK Antenna Gasket
HI-TAK Antenna Gasket
Conductive Blue Antenna Gasket
Blue conductive antenna gasket
Blue conductive antenna gasket
Blue conductive antenna gasket
HI-TAK Antenna Gaskets
HI-TAK Antenna Gasket
Antenna Gasket installed on antenna
Antenna gasket installed on antenna
HI-TAK Antenna Gasket
HI-TAK Antenna Gasket
HI-TAK Antenna Gasket
HI-TAK Antenna Gasket
HI-TAK Antenna Gasket
HI-TAK Antenna Gasket
  • Gaskets are die-cut from conductive or non-conductive mesh encapsulated with a soft, tacky and pliable polyurethane sealant
  • Durable environmental seal for exceptional antenna and airframe corrosion prevention
  • Improved antenna reliability and reduced corrosion-related removals and inspections
  • Die cut to ensure consistent fit and sealing over the entire surface
  • Aluminum carrier in the conductive HI-TAK antenna gaskets provide electrical bonding of less than 2.5 mΩ
  • Fastener protection: When the gasket is compressed between the faying surfaces, the sealant is forced into areas of lower compression, such as the fastener holes, holes for connectors, or the perimeter of the gasket
  • Conductive HI-TAK antenna gasket approved for use in CID A-A-59398A
  • FAA PMA available for selected part numbers
  • "Apply and Fly™" gasket for easy installation
  • Non-hazardous (no VOCs) and no residue left behind
  • Most antenna footprints available - or request a custom gasket to fit your application
  • Available as a Conductive or Non-Conductive gasket to suit system requirements
COMMON USES: • Antenna Gasket • Sensors • Lights • Probes

Product Specifications

Gaskets
Conductive Antenna Gasket

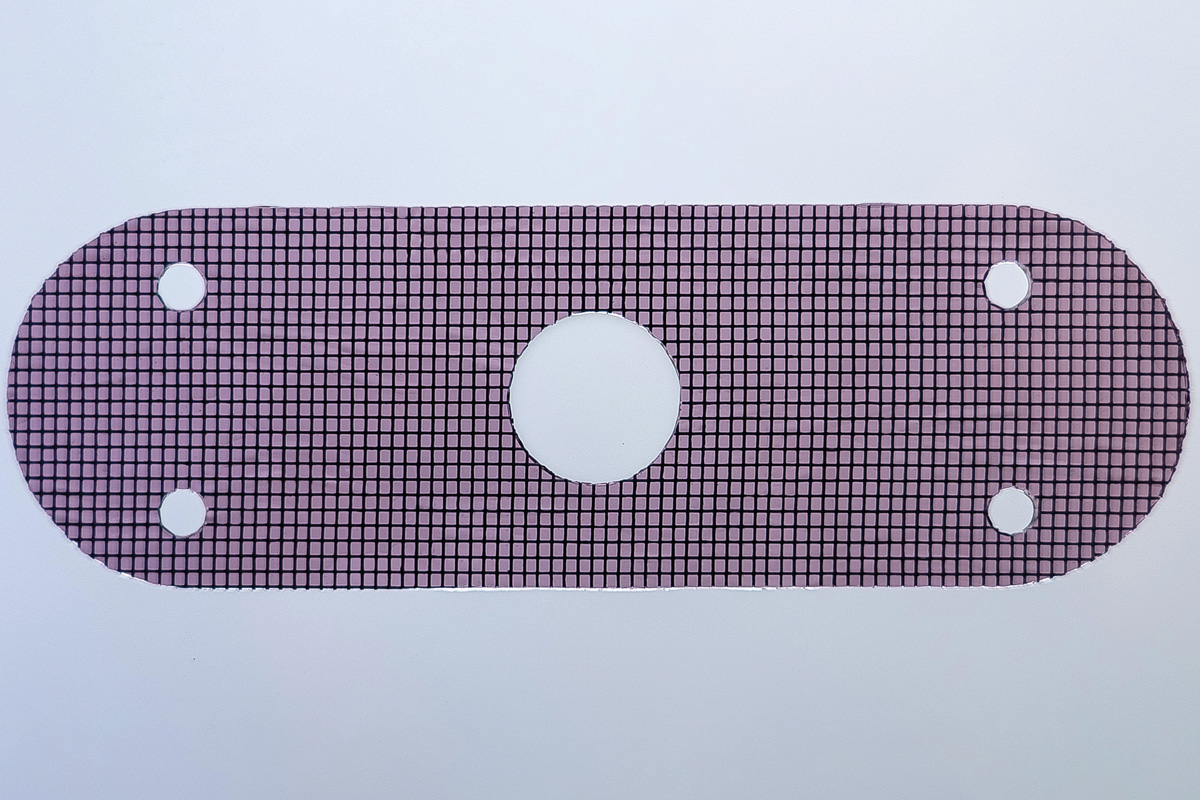

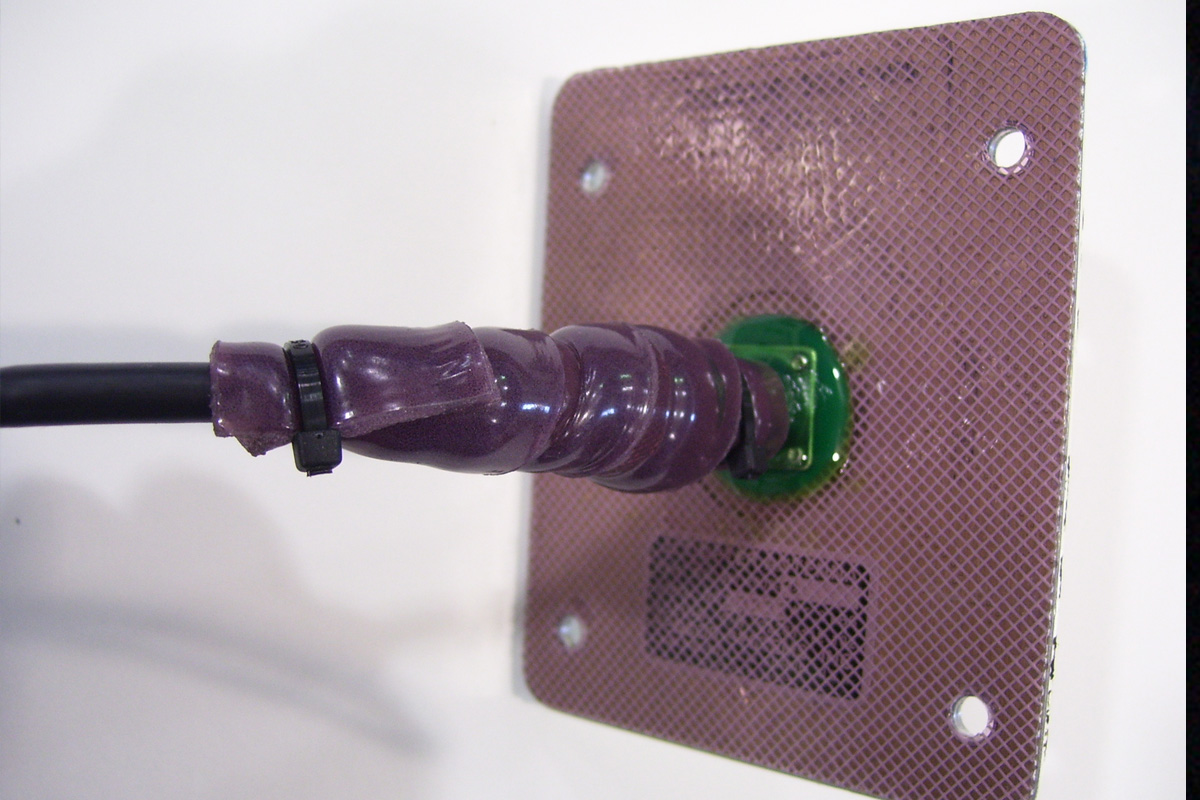

Non-Conductive Antenna Gasket
Part Number Series
AGXXXXXX-YY
AGXXXXXX-YY
Color
Blue
Plum
Thickness (as supplied)
Standard = 0.055 in (1.40 mm)
Standard = 0.045 in (1.14 mm)
Thickness (compressed)
Standard = 0.034 in (0.86 mm)
Frame (Mesh)
5056 Aluminum
Fiberglass
Bonding Resistance
Antenna to aircraft, Meets MIL-B-5087B Class "R", MIL-STD-464 and MIL-STD-1310H, ≤2.5mΩ
Shelf Life, sealed container
Indefinite (in original packaging and protected from UV exposure)
Indefinite (in original packaging and protected from UV exposure)
Reactivity, to typical aviation metallic and non-metallic surfaces
None. (Product supplied fully cured)
None. (Product supplied fully cured)
Service temperature guide per RTCA DO-160G, Section 5, 2 cycles
-85°F to 275°F (-65°C to 135°C)
-85°F to 275°F (-65°C to 135°C)

PDF Documents to Download, View & Print

Antenna Gasket Installation

National Stock Numbers (NSN)

Av-DEC P/N
Av-DEC NSN
Description
Application
Category
AG233000-01
5330-01-629-3914
AG233000-06
5330-01-587-5605
AG233000-08
5999-01-492-5656
Valcom AS-2108A/ARN-89A Loop Ant.
H-60, C-130, CH-47
ADF Loop
AG233000-09
5330-01-507-1694
Collins 522-2615-005, 137A-06, DF203
C-130
ADF Loop
AG233000-11
5330-01-507-1685
622-2363-001 ANT 60A, DF-206A
H-60, C-130
ADF
AG233000-13
5330-01-507-1701
398462-9, No Connector Hole, 4 per
C-130
ADF Sense Supp. Assy.
AG233000-14
5330-01-507-1688
398462-11, Connector Hole, 2 per
C-130
ADF Sense Supp. Assy.
AG233000-15
5999-01-530-3891
Bendix #2087966, System: LPA 73
C-130
ADF Loop
AG233000-17
5999-01-530-3950
9900P03389, MD-100/WJ-1840 System
C-130
DF/OMNI
AG233000-18
5999-01-530-3915
751962, MD-100/WJ-1840 System
C-130
DF/OMNI
AG233000-19
5999-01-530-6450
751965, MD-100/WJ-1840 System, Lower Cover
C-130
DF/OMNI
AG233000-21
5330-01-556-9025
AS-3933/ARN-149(V), AS-4480/ARN-149, 622-6820-001(-003), 622-2363
H-60, H-64, C-130
ADF
AG233000-23
5330-01-585-2301
AG233000-26
5999-01-592-5555
AG233000-28
5999-01-540-0669
AT-434A, 071-1348-00
UH-1
ADF
AG233000-30
5330-01-531-6493
DF-301E 622-0902-006 13499
S-70B-2, S-70A-9
ADF/UHF Homing Mount
AG233000-31
5999-01-536-6700
AS-3934/ARN-149, 622-6820-002
C-135
ADF
AG233000-33
5330-01-580-3782
AG233000-37
5330-01-546-2560
522-2615-006, 4K90033-101A
C-5
ADF Loop
AG233000-38
5330-01-560-0166
7-23-30/1, 282620-1
H-60, H-47
ADF
AG233000-46
5999-01-594-8327
AG233000-49
5999-01-579-3601
AN/ALD-9, 5845637P1, Sanders 1077673
EP-3
ADF
AG233000-59
5999-01-582-4140
AG233000-67
5999-01-654-3933
AG233000-96
5999-01-654-3676
AG247000-01
5999-01-492-5692
AS-2890/APR-39, SM-A-877045
H-60, CH-47
Radar Warning
AG247000-05
5330-01-587-2210
AG247000-07
5330-01-578-9805
AG247000-11
5330-01-660-3423
AG247000-20
5999-01-654-2934
AG247000-27
5999-01-654-3912
AG259000-05
5999-01-612-0791
AG259000-09
5999-01-586-7568
AG262000-04
5999-01-530-2978
C-130
AoA Probe
AG268000-01
5999-01-525-6317
AS-3149/ALQ-156V
CH-47
Countermeasures
AG268000-04
5999-01-593-1030
AG272000-01
5999-01-507-4267
ALR-69 ECM Sys., AS-3262, 312350-2
C-130, A-10
Compass Sail
AG272000-03
5999-01-584-6137
27130-1
F-16
CD Band
AG272000-04
5999-01-591-5234
AG272000-08
5999-01-671-1823
AG272000-09
5999-01-671-1819
AG276000-04
5999-01-600-9540
AG276000-05
5999-01-600-9538
AG276000-06
5999-01-600-9532
AG276000-07
5999-01-600-9534
AG276000-08
5999-01-600-9527
AG276000-09
5999-01-600-9541
AG276000-14
5999-01-608-2004
AG282000-03
5999-01-534-7908
AS-4319, S65-5366-7L, AS-3422/ARN-118(V), DMN129-11, DMN150-2
C-5, E-6B, F/A-18
ATC/DME/L-BAND
AG282000-04
5999-01-539-3954
162BT, 805-10033-001, KA61, 071-00221-0010, 0020
H-1
ATC/DME/L-BAND
AG282000-10
5330-01-629-3905
AG282000-16
5330-01-593-7622
AG282000-20
5999-01-650-6872
AG282000-28
5330-01-619-8408
AG282000-29
5330-01-619-8413
AG282000-30
5330-01-619-8600
AG282000-31
5330-01-619-8411
AG282000-36
5330-01-646-9025
AG282000-53
5999-01-671-2342
AG326000-01
5999-01-539-6878
AS3554, AN/ALQ-162, 145E3440
H-47, H-53
RADAR JAM
AG326000-03
5330-01-622-2629
AG326000-04
5330-01-645-2848
AG328000-01
5330-01-608-2335
AG352000-01
5999-01-596-6554
AG354000-01
5330-01-530-5575
FLIR Mounting Base
H-1
FLIR (TFU)
AG354000-06
5330-01-619-6573
AG358000-02
5999-01-508-3339
261D1365, DMQ18-3, DG ELT 10-214-2
H-60, H-65, C-130
ELT
AG358000-03
5999-01-508-5780
Artex 110-328-01
C-130
ELT
AG358000-05
5999-01-522-7812
DG ELT10-696
KC-135
ELT
AG358000-07
5999-01-564-2897
110-340, C406-2, 455-5011, CI 319-1
C-5
ELT
AG358000-08
5999-01-528-8699
110-320, 110-323, 720055
C-130
ELT
AG358000-15
5999-01-547-2080
10-118-35-1
H-60, H-47
ELT
AG358000-17
5999-01-596-3097
AG358000-29
5330-01-632-3646
AG367000-01
5999-01-530-3628
C-130
Formation Light
AG367000-02
5999-01-554-7861
72914A2376-1, AN3099-1
C-130
Formation Light
AG367000-03
5999-01-596-6528
AG367000-04
5999-01-596-6535
AG367000-06
5999-01-596-6544
AG367000-07
5999-01-596-8324
AG367000-08
5999-01-600-8729
AG367000-09
5330-01-608-2338
AG369000-01
5999-01-492-5696
Chelton 18-12P4, ARC-222
H-60
FM Whip
AG369000-02
5999-01-540-0284
AV504, AS-3841/ARC, DG FM10-30-1, -4
UH-1
FM Whip
AG369000-03
5999-01-540-2395
AV404
UH-1
FM Whip
AG377000-02
5330-01-608-4958
AG423000-01
5999-01-614-9423
C-130J
Ice Detector Gasket
AG423000-02
5999-01-592-2419
AG423000-03
5999-01-591-2480
AG433000-02
5999-01-507-8662
M25708/1-01, AT-741B/A, B/B, 2334
A-10, EA-6B, U-2 HU-25, H-53, H-60, H-65, C-130, C-135,
IFF/TACAN
AG433000-03
5999-01-507-5162
M25707/1-01, AT-740/A, 22630
H-53, H-60, C-130, CH-47
IFF/TACAN
AG433000-04
5999-01-492-5849
DG L10-271-1
H-60
IFF/TACAN
AG433000-05
5999-01-507-8802
Adapter Ring for AT-740/A, AT234-APX, 375124-1, SKE Pedestal 80008-9100-1, 80008-9000-1
C-130
IFF/TACAN
AG433000-06
5999-01-525-7474
RAMI AT-884/APX-44
H-47
IFF/TACAN
AG433000-07
5330-01-608-2360
AG433000-10
5999-01-583-7475
AG433000-14
5999-01-544-0113
1007200G-10, AS-4440/APX-111(V), IFF(CIT, C/D)
F/A-18
IFF
AG433000-19
5999-01-578-7823
AG433000-41
5999-01-654-2935
AG435000-07
5999-01-654-3199
AG436000-01
5999-01-575-9345
AG436000-03
5999-01-507-8649
618S1,AB620A-A,AML61-1, 14780
C-130
HF Mast
AG436000-05
5999-01-543-9464
HF Antenna Mast Base
C-5
HF Mast
AG436000-06
5999-01-546-1500
HF Panel Conductive Strip
C-5
HF Panel
AG437000-01
5999-01-527-1562
S7060-13014-011, 435A10HN-1P4
H-60
HF Mast
AG437000-02
5999-01-527-1908
S7060-13014-011, 435(S)C10P4, 4700516, 485SC10P4
H-53, H-60
HF Mast
AG437000-03
5999-01-507-8805
S7060-13014-011, 4700516, 605-113, Tivec-Avant AV605-6
H-60
HF Mast Center Mount
AG437000-04
5999-01-539-6896
435C10
H-53
HF Mast Center Mount
AG437000-07
5999-01-558-4803
AV 605-3, -6, -7
H-60
HF Antenna Mast
AG437000-08
5999-01-525-4726
AV-647, AN/ARC-220 (W/O connector hole)
CH-47, MH-47
HF Tube Antenna
AG437000-09
5999-01-539-2323
435A10HP
H-53
HF Antenna Mast
AG437000-10
5999-01-539-2396
23695/IL Grounding Assembly for 435 Series
H-53
HF Antenna Mast
AG437000-11
5999-01-539-2406
455SAPT Switched Ground Mast for 435 Series
H-53
HF Antenna Mast
AG437000-12
5999-01-525-7505
AV-647, AN/ARC-220 (with connector hole)
CH-47, MH-47
HF Tube Antenna
AG437000-32
5330-01-624-5632
AG457000-01
5330-01-531-5744
AG457000-02
5999-01-531-5744
DMN25-1, -3, 61601-01003 (same as AG457000-03 W/1 Conn)
H-60
Glideslope
AG457000-03
5999-01-507-3999
AT-326/ARN, 522-0700-023, 37P5
C-130, H-53, H-47
Glideslope
AG457000-04
5330-01-558-8028
DG GS10-336, -48, AS-3527/A, AN/ARN-123
H-60
Glideslope
AG466000-01
5999-01-507-7031
ANS-4, 3330678-5, 3345057-5
C-130
Homing System
AG466000-02
5999-01-507-9287
ANS/4 168580-1, Whip
C-130
Homing System
AG466000-04
5999-01-565-1838
AG477000-01
5999-01-527-9380
10706, S67-1575-16, -52
C-135
GPS
AG477000-02
5999-01-508-6033
01-01372-001 (002), AS-3822, FRPA-3
H-60, C-130, CH-47, HU-25
GPS
AG477000-03
5999-01-510-0799
S67-1575-14, -20, -39, -76, Chelton 20-13
H-65, H-60, C-135
GPS
AG477000-04
5999-01-507-7063
AN/ARN-151, 01-01374-001
H-53, C-130
GPS
AG477000-05
5999-01-507-9260
471350-01
C-130
GPS
AG477000-06
5999-01-508-2771
Micro-Pulse12700, Newcomb1552,1553
C-130
GPS
AG477000-09
5999-01-540-0662
16248-11
H-1
GPS
AG477000-10
5999-01-502-6250
Trimble 16248-20, 22433-40, 8160458
H-60, UH-1, CH-47
GPS
AG477000-11
5999-01-522-9973
DMC146-13-2
EA-6B
GPS
AG477000-14
5330-01-591-2599
AG477000-15
5999-01-535-8182
AS-3821A/ARN (GAS-1)
H60, H-53
GPS
AG477000-18
5999-01-591-5233
AG477000-24
5999-01-597-7778
AG477000-33
5330-01-592-6658
AG477000-35
5999-01-608-2244
AG477000-41
5999-01-569-0024
AG477000-47
5330-01-662-0867
AG477000-51
5330-01-591-2587
AG477000-52
5330-01-608-2342
AG477000-57
5330-01-662-0868
AG527000-01
5999-01-492-5856
Cubic Defense 235890-1
H-60, C-130, H-53
LARS
AG527000-02
5999-01-586-2789
AG527000-03
5330-01-558-8027
SU-130B/AVR-2B(V), AN/AVR-2B(v), L31-13000-03
H-60
Laser Sensor Unit
AG527000-05
5330-01-593-7684
AG527000-07
5999-01-606-5508
AG627000-01
5999-01-513-7535
RAMI AT-640A/ARN, ARC A-24A, 37X-2, 522-0854-003
CH-47,H-53, H-65
Marker Beacon
AG627000-02
5999-01-534-4782
DMN27-1/A, 261D738
E-3, E-6, C-5
Marker Beacon
AG627000-03
5999-01-596-6576
AG627000-05
5999-01-492-5875
DG FMB10-272E or FM10-12
H-60
Marker Beacon
AG627000-06
5999-01-523-0036
Chelton 17-9P15
EA-6B
Marker Beacon
AG627000-07
5999-01-507-8651
AT-536/ARN, 91D13159, 60C400
C-130
Marker Beacon
AG627000-08
5999-01-515-1952
DMN50-3
A-10
Marker Beacon
AG627000-09
5999-01-506-8721
Datron/Transco 128879, 16F01700
F-16
Marker Beacon
AG627000-21
5999-01-525-6319
Use with AG627000-01
CH-47
Mkr Bcn Adapter
AG627000-38
5999-01-591-3106
AG627000-58
5999-01-654-3032
AG642000-01
5999-01-567-7786
S65-8282-68, -78, -98, -168, 018-0354-010
A-10, C-130, C-135
Wing Antenna
AG642000-04
5999-01-565-5352
Adapter Plate for AG642000-01,018-0354-030 Rev E, ARC-210
A-10
Wing Antenna Adapter
AG644000-01
5330-01-561-8402
AG644000-02
5330-01-561-8404
AG644000-03
5330-01-561-8398
Grumman Aerospace NGG810EP3, REV C
AG644000-04
5330-01-641-1839
AG657000-01
5999-01-507-9248
201-601-027-000, AS-4123/ARN-152
C-130
MLS
AG657000-02
5999-01-507-8671
201-601-026-000, AS-4124/ARN-152
C-130
MLS
AG657000-03
5999-01-507-8826
100-601-273-000, AS-4125/ARN-152
C-130
MLS
AG657000-04
5999-01-513-5198
AS-4519/APX-116, SP414228-099
H-53
Transponder/Beacon
AG657000-05
5999-01-530-2963
100-601-273-000, Use with AG657000-03
C-130
MLS Adapter Plate
AG657000-06
5999-01-522-9730
S65-5366-22M, -32M, -42M
KC-135
MLS
AG657000-07
1560-01-535-5814
Use with AG657000-06
KC-135
MLS
AG657000-09
5330-01-593-7628
AG657000-15
5999-01-596-6563
AG657000-18
5330-01-608-2348
AG657000-19
5330-01-662-0869
AG723000-01
5999-01-508-3354
UB Corp AD 43011-01C, 437X-1, AL-101
C-130, C-135
RAD ALT
AG723000-02
5999-01-527-9382
AHV-16 ANT-140A 9599-607-12352
C-130, C-135
RAD ALT
AG723000-03
5999-01-552-6965
622-6793-001, ANT-52, 071-01501-0100, 0200, KA 54A
H-1, C-130
RAD ALT
AG723000-05
5999-01-514-9191
Sensor S67-2018
C-130, A-10
RAD ALT
AG723000-06
5999-01-523-0011
LG81K1, LG81K2, AS-2741/APN-194(V)
EA-6B
RAD ALT
AG723000-07
5999-01-492-5882
Honeywell LG81AT01, SM-D-967308
H-60, UH-1, CH-47
RAD ALT
AG723000-08
5999-01-524-8693
AS-3831 (3851)/APN-209(V), AS-2595/APN-194(V)
CH-47, H-64
RAD ALT
AG723000-10
5999-01-522-9968
AS-2779/APN154(V), A51A9168-1, X Band
EA-6B
RADAR BEACON
AG723000-11
5999-01-522-9951
78E6N1100, AS-3570/ALT-40(V), USQ-113 TX
EA-6B
RADIO CM
AG723000-12
5999-01-522-9963
USQ-113 TX Fiberglass RADOME, 6Y3581-1
EA-6B
RADIO CM RADOME
AG723000-13
5999-01-503-2817
LG81A1, LG81A3, 8802700016-3
H-53, C-130, UH-1
RAD ALT
AG723000-14
5999-01-552-5643
74A315141-2003, AS-3190A/ALR-67(V), 31-052179-02
F/A-18
Electronic Alt Sys
AG723000-15
5999-01-522-9966
1128B48308-19, ACLS Mount Plate, KA Band
EA-6B
RADAR BEACON
AG723000-18
5330-01-531-6229
AS-2595/APN-194(V), 70600-01033-011, -012
H-60
RAD ALT
AG723000-19
5999-01-523-8524
AS-3644/APN-232(V), Ball Aero PN 3001117-500
C-130
RAD ALT
AG723000-22
5999-01-578-7844
AG723000-24
5330-01-608-2329
AG723000-25
5999-01-522-9213
AT-505/AP, MIL-A-25895
KC-135
RAD ALT
AG723000-32
5999-01-578-7872
AG723000-33
5999-01-602-4366
AG723000-49
5330-01-618-2051
AG728000-03
5999-01-492-5689
Chelton 19-400, -400P4, -400P13
H-60
SATCOM
AG728000-04
5999-01-508-6042
19-440P4, 19-430-10P28, 19-440-10
H-53, C-130, HU-25, C-135
SATCOM
AG728000-06
5330-01-534-2194
S65-8282-196, 19-450-10, 19-451-12
C-130, C-135, H-60
SATCOM
AG728000-08
5999-01-534-5835
403002-001, S65-8282-101, 015-10683-001
C-5, C-135
SATCOM
AG728000-09
5999-01-510-1353
DMC34-3/C
C-135
SATCOM
AG728000-10
5999-01-507-8622
DMC34-3/B,DMC34-8-1,DG UHF 10-629
C-130
SATCOM
AG728000-11
5999-01-530-9427
9139001, Adapter Plate for 19-430-10
C-130
SATCOM ADAPTER
AG728000-15
5999-01-561-9500
AG728000-16
5330-01-558-7144
AG728000-18
5999-01-523-0216
IGA-2000, 013-1963-010
C-135
SATCOM
AG728000-19
5999-01-530-4088
Trivec Avant
C-130
SATCOM
AG728000-20
5999-01-522-7783
Arinc A0241366200-103
KC-135
SATCOM ADAPTER
AG728000-21
5999-01-530-9432
003220-01, LRP Antenna
C-130
SATCOM ADAPTER
AG728000-22
5999-01-563-4826
AG728000-26
5999-01-544-2155
7516194-901, MCS-4000/7000
KC-135, C-5
SATCOM
AG728000-34
5999-01-565-2822
AV 2075-8, 018-0354-040 Rev E, AN/ARC-210
A-10, H-1
SATCOM
AG728000-36
5999-01-574-2301
AG728000-41
5999-01-578-8424
AG728000-45
5999-01-584-5014
AG728000-46
5999-01-596-6569
AG728000-47
5999-01-589-4681
AG728000-53
5999-01-601-1306
AG728000-74
5999-01-650-5383
AG736000-01
5999-01-506-4338
AN/AAR-47 Optical Sensor
H-60, C-130
SENSOR, RADAR
AG736000-02
5999-01-507-4151
AS-3549A/APR-39, E/J & MIL Bands MMW, 4240640-502
H-60, C-130, CH-47, A-10
SENSOR, RADAR
AG736000-04
5999-01-527-9381
L-3 Randtron 27008, 27000-1, LM 16VE135-1
H-60, C-130, CH-47, A-10
SENSOR, RADAR
AG736000-07
5999-01-589-0987
AG736000-08
5999-01-549-5133
Left Fwd, 4256111-503, AS-3306/ALR-67(V)
F/A-18
RADAR Warning
AG736000-09
5999-01-549-5229
Right Fwd, 4256111-504, AS-3359/ALR-67(V)
F/A-18
RADAR Warning
AG736000-13
5999-01-596-3098
AG736000-15
5999-01-596-3099
AG736000-26
5330-01-618-1646
AG736000-27
5330-01-618-1680
AG736000-28
5999-01-631-3811
AG736000-29
5999-01-631-5531
AG753000-01
5999-01-507-8666
7312-0106-1, AS3091/APN-169B
C-130
SKE OMNI
AG766000-01
5999-01-531-5747
AS-3882/ASQ, 70600-81833_78286, S65-625204
H-60
Sono Buoy Receiver
AG766000-02
5999-01-535-6138
AS-3390/ASQ, IBM 6626608
H-60
Sono Buoy Receiver
AG768000-04
5999-01-515-5383
Sikorsky 70553-05002-105
H-60
Anti-Collision Light
AG768000-06
5999-01-540-0626
Adapter Ring use with AG768000-04
H-60
Anti-Collision Light
AG768000-08
5999-01-540-0643
H-1
Tail Position Light
AG768000-16
5330-01-634-0242
AG768000-24
5999-01-577-3557
AG768000-33
5330-01-573-3130
AG768000-39
5330-01-608-2334
AG768000-52
5999-01-603-1974
AG768000-53
5330-01-608-2331
AG768000-55
5999-01-596-3100
AG778000-01
5999-01-507-9303
0856NM1, Assembly 3331161-1
C-130
PITOT STATIC
AG778000-02
5999-01-507-5029
0856NM2, Assembly 3331161-2
C-130
PITOT STATIC
AG778000-11
5999-01-564-2927
AG778000-14
5999-01-596-6585
AG778000-20
5999-01-581-5467
AG786000-03
5999-01-541-5442
805-10930-001, NY-163
H-60
Stormscope
AG822000-01
5999-01-507-8808
Bendix 071-50001-8105, ANT-81A
HU-25, C-130, C-135
TCAS
AG822000-03
5999-01-534-4777
7514081-905, -917
E-6, C-5
TCAS
AG822000-04-24X24
5999-01-618-5735
AG822000-09
5330-01-610-6111
AG822000-13
5330-01-578-6418
AG822000-23
5330-01-608-2330
AG822000-29
5330-01-662-2954
AG822000-33
5330-01-665-8444
AG843000-02
5999-01-515-1942
DMC50-1
A-10
VHF/UHF
AG843000-03
5999-01-508-2913
S65-8280-4, 121-0010, S65-8282-30
H-65, C-130, A-10
VHF/UHF
AG843000-04
5999-01-508-6087
DMU64-1 Adapter-to-Aircraft
C-130
VHF/UHF
AG843000-05
5999-01-508-3303
Adapter-to-Antenna DMC60-4
C-130
VHF/UHF
AG843000-06
5999-01-523-0089
S65-8262-2A, -5A
C-135
VHF/UHF
AG843000-07
5999-01-551-8130
AS-2817/ARC, DMCN122-9-1, 11D27700, 9-34P50, DMCN18-11/A
F-15
VHF/UHF
AG843000-09
5999-01-527-9385
DMQ18-1/A
C-130
VHF/UHF/ELT
AG843000-10
5999-01-601-1301
AG843000-11
5999-01-514-9195
DMCN18-4/D, -6
A-10
VHF/UHF/TACAN
AG843000-12
5999-01-515-9994
Chelton 12-200B, 12-200
A-10, C-130
VHF/UHF/TACAN
AG843000-13
5999-01-522-9274
DMC60-3, DMC60-1
KC-135
VHF/UHF
AG843000-14
5999-01-527-1582
Chelton 16-21B, -6, -49, -26T, Artex ELT 110-333
H-60
VHF/UHF
AG843000-15
5999-01-507-5175
522-2646-011, 23070-1, 261D1005-2
EA-6B, C-130
VHF/UHF
AG843000-16
5999-01-502-6222
M5815/1-01, AT256A/ARC
H-53, C-130, EA-6B, UH-1, H-47
VHF/UHF/TACAN
AG843000-17
5999-01-507-8633
AS-3939/ARC-201, DG FM10-312-2
H-60, H-65, C-130, CH-47, HU-25
VHF/UHF/HF/TACAN
AG843000-18
5999-01-540-9969
AN/ARC-186, VFS10-90-6, VU10-826, 21-38P4, AS3204/ARC, AV226
H-60, H-47
VHF/UHF
AG843000-19
5999-01-492-5842
Chelton 12-190-222P4
H-60, EP-3
VHF/UHF/TACAN
AG843000-20
5999-01-492-5838
Transco 11D21300-2
H-60, EA-6B
VHF/UHF/TACAN
AG843000-21
5999-01-507-5179
622-4538-001, 777-1950-001, AS-3191/A
C-130
VHF/UHF/TACAN
AG843000-27
5330-01-553-7922
20-200-1, AS-3969/A, 20-200-F-18
F50
VHF/UHF
AG843000-29
5999-01-514-7920
DMC7-3
U-2
VHF/UHF
AG843000-33
5999-01-525-7253
Collins 522-1136-011, 137X-1
H-47
VHF/UHF/VOR/LOC
AG843000-34
5999-01-513-6999
Chelton 12-22, 12-229P4, AN/ARC-222
H-53
VHF/UHF
AG843000-37
5330-01-645-4202
AG843000-38
5999-01-540-0415
AT-1108/ARC, 87C1108-1
UH-1
VHF/UHF
AG843000-41
5999-01-502-6911
DC 720058, Wulfsberg 121-017850-01, AT-550
UH-1
VHF/UHF
AG843000-42
5999-01-522-9938
DMC144-1-1, AS-3767/ARC-182
EA-6B
UHF
AG843000-43
5999-01-530-3590
C-130
VHF/UHF
AG843000-45
5999-01-527-2002
DG UF10-269, SP0900-01-D-9703-1158, AN/ARC-164, AS-3524A
H-60
UHF/AM
AG843000-46
5999-01-527-2308
UH-60
VHF/FM HOMING
AG843000-47
5999-01-527-1575
5985-01-124-7297
UH-60
VHF/FM HOMING
AG843000-48
5999-01-544-5535
5985-01-370-4757
AH-64A,D
VHF/FM
AG843000-49
5999-01-502-0606
UH-60
VHF/FM/AM ADF SENSE
AG843000-52
5999-01-513-5203
AN/ARC-222
H-53
VHF/UHF
AG843000-53
5999-01-513-7515
AN/ARC-164
H-53
VHF/UHF
AG843000-55
5999-01-544-0120
3380-8012-0002
F/A-18 A-D
VHF/UHF
AG843000-56
5999-01-508-6027
DMC175
C-130H
UHF BATWING
AG843000-57
5999-01-509-8953
A143EP28
CH-47F
VHF/UHF
AG843000-58
5999-01-509-3134
5985-01-129-7463
H-60
VHF/FM/AM LF/ADF SENSE
AG843000-59
5330-01-534-2195
AS3881/ASQ
HH-60H
VHF/UHF/IFF/TACAN
AG843000-60
5999-01-616-5756
Dash 8
VHF/GPS
AG843000-63
5999-01-522-9948
Aircraft 665-Long-8 Fasteners
EA-6B
VHF/UHF ADAPTER PLATE
AG843000-64
5999-01-522-9942
1128BC4035-11
EA-6B
VHF/UHF ADAPTER PLATE
AG843000-65
5999-01-522-9936
1128BM4035-13
EA-6B
VHF/UHF ADAPTER PLATE
AG843000-66
5999-01-586-7559
Citation II
UHF
AG843000-68
5999-01-540-3013
121-040045-01
UH-1
VHF COMM
AG843000-69
5999-01-538-3972
5985-00-079-5046
C-5
VHF/UHF
AG843000-71
5999-01-565-1836
Chelton
VHF
AG843000-75
5330-01-629-4211
AG843000-79
5999-01-583-4127
AH-64D
UHF/AM/IFF
AG843000-84
5999-01-540-0280
AIC 001810
UH-1
VHF/LOS MOUNT PLATE
AG843000-90
5999-01-551-7390
AS3767/ARC-182
EA-6B
UHF
AG843000-91
5999-01-667-1344
AG843000-92
5999-01-540-0372
AT-160
UH-1
VHF/UHF
AG843000-96
5999-01-627-8083
AG843000-98
1560-01-535-6014
AG843000-99
5999-01-536-0611
A0240626300-001
KC-135
UHF/L-BAND ADAPTER
AG844000-03
5999-01-618-5739
AG844000-04
5999-01-544-0871
AMP Mod-like 728000-04
C-5
VHF/UHF COMM
AG844000-18
5330-01-645-3522
AG844000-23
5999-01-591-3104
Collins
VHF/UHF
AG844000-26
5999-66-157-1035
Chelton 21-63
S-70
CWF WHIP
AG844000-26
5999-01-569-5596
AG844000-27
5330-01-603-5803
NH-90
UHF
AG844000-28
5999-01-573-0177
CN-235
MULTI-BAND
AG844000-30
5330-01-599-7303
KC-45
VHF/UHF
AG844000-32
5999-01-589-4689
HR Smith 10-105-23B
A330-MRTT
VHF/UHF
AG844000-33
5999-01-578-6793
KC-135
VHF/UHF
AG844000-49
5999-01-590-0055
L-3
UHF ADAPTER PLATE
AG844000-58
5330-01-625-5207
AG844000-61
5999-01-608-7399
Chelton
Chelton 12-56P15
VHF/UHF
AG844000-62
5999-01-608-7388
Chelton
Chelton 19-300TP15
VHF/UHF
AG844000-67
5999-01-596-6559
AG844000-69
5330-01-595-6950
AG844000-72
5330-01-680-0213
AG844000-73
5999-01-678-6752
AG844000-84
5999-01-619-7775
AG844000-94
5999-01-660-8295
AG844000-98
5999-01-612-0553
AG845000-01
5999-01-514-7926
RF252-7 For Use With AG843000-29
U-2 Palmdale
UHF ADAPTER PLATE
AG845000-02
5999-01-514-7905
RX607-1 For Use With AG845000-03
U-2 Palmdale
VHF/UHF ANT & SPACER
AG845000-03
5999-01-514-5200
RX1366-8 For Use With AG845000-02
U-2 Palmdale
VHF/UHF ADAPTER PLATE
AG845000-04
5999-01-514-5507
RX277-3 Adapter Plate
U-2 Palmdale
RX277 ADAPTER PLATE
AG845000-07
5330-01-579-0526
U-2 Palmdale
AG867000-01
5999-01-573-0185
VOR
AG867000-02
5999-01-578-6763
DMN4-17-1/N
Continental Express Embraer 145
VOR
AG867000-03
5999-01-664-2290
AG867000-04
5999-01-513-5207
DMN4-4
H-53
VOR
AG867000-06
5999-01-492-5829
AN/ARN-147(V)
UH-60
VOR
AG867000-07
5999-01-514-9193
5985-00-089-8048
CH-47D
VOR
AG867000-08
5999-01-507-8680
AN/ARN-126
KC-130T
VOR
AG867000-14
5999-01-654-3663
AG867000-16
5999-01-539-2067
DMN4-4
H-53
VOR
AG867000-21
5999-01-552-6981
5985-00-948-2009
C-5
VOR
AG867000-27
5999-01-565-1840
VH-60N
VOR
AG867000-33
5999-01-534-7887
261D712
C-5
VOR
AG868000-01
5999-01-523-7288
102AH2AG
RC-135
TOTAL TEMP PROBE
BL120120-01
5330-01-595-4205
GASKET BLANK
BL171050-01
5999-01-492-5863
11" x 17" Blank Sheet
GIV
GASKET BLANK
BL171050-03
5330-01-529-4309
11" x 17" Blank Sheet
GASKET BLANK
PG127000-01
5330-01-581-4544
U4AR Splice Plate
E-3/707
RADOME Splice Plate Gasket
PG127000-03
5330-01-581-4545
U13AL Splice Plate
E-3/707
RADOME Splice Plate Gasket
PG127000-04
5330-01-581-4539
U10AR Splice Plate
E-3/707
RADOME Splice Plate Gasket
PG127000-05
5330-01-581-4541
Splice Plate
E-3/707
RADOME Splice Plate Gasket
PG127000-06
5330-01-581-4540
L4AL, L4AR, L4FL, L4FR, Splice Plate 204-20127-4
E-3/707
RADOME Splice Plate Gasket
PG127KIT-01
5330-01-581-4547
4 X -01, 38 X -03, 4 X -04,10 X -05, 2 X -06
E-3/707
RADOME Splice Plate Gasket
PG243000-04
5330-01-623-1087
C-130J
De-icing Boot Antenna
PG243000-05
5999-01-623-1227
C-130J
De-icing Boot Antenna
PG243000-06
5999-01-623-1834
PG245000-05
5330-01-631-3161
C-130 Legacy and C-130J
Nose Radome Hinge Cover Panel
PG245000-08
5999-01-633-8332
C-130J
Paratroop Door Plate Gasket
PG245000-09
5330-01-656-7460
PG647000-01
5999-01-532-5979
R/H Side Tailboom Access Panel 70210-05001-124
H-60
Tail Access Panel Gasket
PG647000-02
5999-01-532-6014
L/H Side Tailboom Access Panel 70210-05001-123
H-60
Tail Access Panel Gasket
PG667000-01
5330-01-558-5915
96207-81202-105, -106
H-60
Nose Bay
PG728000-04
5999-01-676-6950
PG762000-01
5330-01-551-9884
Mounting Pad Gasket - Packaged 10 per
H-60
Racks, Nose Bay
PG762000-03
5330-01-548-7776
Conductive Gasket Rectangles - Packaged 4 per
H-60
Transformer Base
PG762000-04
5330-01-558-8614
Conductive Gasket strips for Eq. Box 96550-01032-101 2 per
H-60
Equipment Box
PG762000-06
5330-01-558-8615
Conductive Gasket Rect. for Data Bus Coupler D36120
H-60
Data Bus Coupler
PG762000-07
5310-01-595-7590
PG762000-08
5999-01-603-3368
PG762000-11
5330-01-576-3714
PG762000-12
5999-01-574-3188
PG762000-14
5999-01-568-3509
Conductive Gasket Nose Landing Light Mount
F-16
Nose Landing Light
PG762000-15
5330-01-562-6850
PG762000-17
5999-01-564-5997
PG762000-18
5999-01-564-5990
PG762000-19
5999-01-564-5996
PG762000-20
5999-01-564-5994
PG762000-21
5999-01-564-5995
PG762000-22
5330-01-558-2220
Avionics equipment CMDC-SW-DP
PG762000-23
5999-01-669-2669
PG762000-24
5999-01-669-2687
PG762000-25
5999-01-669-2696
PG762000-26
5999-01-669-2795
PG762000-27
5999-01-674-4114
PG762000-28
5330-01-675-2680
PG762000-29
5999-01-571-2735
PG762000-30
5999-01-573-0924
PG762000-31
5330-01-608-2339
PG762000-32
5999-01-585-9313
PG762000-33
5999-01-584-9131
PG762000-36
5999-01-577-6988
PG762000-37
5999-01-585-0704
PG762000-38
5999-01-585-0598
PG762000-39
5999-01-578-7720
PG762000-43
5330-01-673-3644
PG762000-44
5330-01-673-3649
PG762000-45
5330-01-671-6235
PG762000-46
5999-01-584-3094
PG762000-47
5999-01-588-0395
PG762000-48
5999-01-585-9589
PG762000-49
5330-01-608-2340
PG762000-50
5330-01-608-2352
PG762000-51
5330-01-608-2337
PG762000-52
5330-01-608-2345
PG762000-56
5999-01-594-8328
PG762000-81
5330-01-611-7890
PG762000-82
5999-01-611-8762
PG762000-83
5999-01-611-8764
PG762000-84
5999-01-611-8766
PG762000-85
5999-01-611-8813
PG762000-86
5999-01-611-8794
PG762000-87
5330-01-611-7911
PG762000-88
5330-01-611-7913
PG762000-89
5330-01-611-7903
PG762000-90
5330-01-611-7900
PG762000-91
5330-01-611-7897
PG762000-92
5330-01-611-7893
PG762000-93
5330-01-611-7905
PG762000-96
5330-01-620-3191
PG762000-97
5999-01-619-7768
PG762000-98
5999-01-619-7777
PG762000-99
5999-01-619-7761
PG827000-01
5999-01-508-9657
PG827000-02
5999-01-508-7875
PG827000-03
5999-01-508-9685
Connector Panel Perimeter Gasket
U-2
Panel Gasket
PG827000-05
5330-01-531-8835
Connector Panel Perimeter Gasket, RR906 Panel
U-2
Panel Gasket
PG827000-07
5330-01-531-8837
Connector Panel Perimeter Gasket, RR903 Panel
U-2
Panel Gasket
PG838000-01
1680-01-530-5508
42716-1, TFU Fairing
H-1
FLIR (TFU) Fairing
PG838000-01A
5330-01-530-5515
42716-1, TFU Fairing
H-1
FLIR (TFU) Fairing
PG838000-01B
5330-01-530-5516
42716-1, TFU Fairing
H-1
FLIR (TFU) Fairing
PG838000-01C
5330-01-530-5517
42716-1, TFU Fairing
H-1
FLIR (TFU) Fairing
PG838000-01D
5330-01-530-5576
42716-1, TFU Fairing
H-1
FLIR (TFU) Fairing
PG838000-02
5330-01-619-6178
PG983078-01
5999-01-560-8684
230A446 Dispenser Panel 2 per pk
Dispenser Panel
SG233000-01
5330-01-530-6063
ADF Loop Antenna Access Panel Gasket
C-130
ADF Access Panel
SG254000-01
5330-01-614-1318
SG278000-01
5330-01-530-5080
Cabin Safety Valve Gasket, 103036-3
C-130
Cabin Safety Valve
SG278000-02
5330-01-614-4606
SG283000-04
5330-01-530-6039
Cargo Tie-Down Gasket 356076 1
C-130
Cargo Tie-Down
SG283000-07
5330-01-530-5076
Cargo Tie-Down Gasket 356076 1
C-130
Cargo Tie-Down
SG283000-08
5330-01-570-2786
Cargo Tie-Down Ring Mount Gasket
C-130
Cargo Tie-Down
SG283000-33
5330-01-631-2420
Dimple Washer
C-130 Legacy and C-130J
Wing Splice Panel Cover
SG283000-48
5330-01-676-7863
SG283000-49
5330-01-676-1201
SG301000-02
5999-01-540-0364
DF-301E Cover Panel Gasket
H-60
DF-301E Cover
SG367000-01
5999-01-557-8362
SG379000-01
5330-01-521-4626
Dry Bay Cover Gasket
C-130
Dry Bay Cover
SG379000-02
5999-01-531-6670
SG382000-01
5330-01-574-6893
SG422000-02
1450-12-123-1234
Upper atch Lid
ICBM SILO B-Plug
SG787000-01
5330-01-529-3389
70351-38110 Main Housing Assy. FWD Bridge Pad
H-60
Transmission Mount
SG787000-02
5330-01-528-9997
70351-XXXXX, Tie Rod Pad
H-60
Transmission Mount
SG787000-05
5330-01-529-2692
Aft Bellcrank Support Gasket #2
H-60
Transmission Mount
SG787000-06
5330-01-529-3390
Aft Bellcrank Support Gasket #3
H-60
Transmission Mount
SG787000-07
5330-01-533-8324
Aft Long. Bellcrank Support 70400-08158-102
S-70
Transmission Mount
SG787000-08
5330-01-618-2670
SG787000-12
5330-01-647-2887
SG864000-01
5999-01-530-9205
AIC World C-130 Unicom Hatch
C-130
C-130 Hatch
SG864000-05
5330-01-669-3776
SG876000-01
5330-01-509-3135
FM10-323D, 70600-06006-011
H-60
Troop Commander
SW782000-01
5999-01-523-0041
DG 071-0768-02, C180-10, 16345, 16346
EA-6B
Static Discharge Retainer
SW782000-02
5999-01-523-0044
DG SI-12097, 16340
EA-6B
Static Discharge Retainer

Pre-cured, Low-resistance, Polyurethane Antenna Gaskets That Deliver Improved Avionics Reliability.

An Applicable Sealant for Sensors and Probes.

Av-DEC HI-TAK conductive antenna gasket system is designed to satisfy environmental sealing requirements in the aviation industry. The gaskets are constructed to meet Federal Aviation Administration (FAA) airworthiness standards. They are recommended for protecting, maintaining, and repairing defective aerospace structures and assemblies. An Aesthetic Technical Build for Standard Sealing Applications

HI-TAK conductive antenna gaskets are constructed with polyurethane-encapsulated aluminum mesh carriers that are integrated to achieve excellent bonding. The gaskets are ideal for:

  • Preventing corrosion from direct electrical and electrochemical corrosive agents.
  • Compatibility with metallic and painted surfaces - which ensures optimal bonding when applied on antenna components
  • Ease of removal after installation, simplifying periodic repairs and maintenance tasks

Pre-cured and Die Cut for Maximum Protection

Av-DEC HI-TAK polyurethane conductive antenna gaskets are pre-cured to guarantee effective application. They are also die cut to match the antenna application, which offers maximum surface protection when applied. The pre-cured polyurethane build ensures the sealant is maintained during vibration and thermal fluctuations. Excellent material memory and elasticity ensure a proper seal. Benefits include:

  • Creating an extensive pressure seal that protects surfaces when extensive vibrations occur
  • Providing maximum protection as an environmental seal thereby protecting surfaces from moisture
  • Eliminating the use of polysulfides or other sealing agents and keeping the application surface clean and free of residues
  • Excellent and even bonding which protects the entire surface. Increases the life span of antennas and decreases the costs associated with structural repairs or replacement
  • Reducing the return-to-service time and speeding up maintenance durations due to quick installation and removal procedures

Increased Resistance to Corrosive Agents

The gasket properties are ideal for protecting surfaces from moisture and fluids. This includes oils, hydrocarbons and chemical substances which could harm the antennas and sensors in the airplane. The HI-TAK polyurethane conductive antenna gasket has an impressive resistance profile. The benefits relating to its resistance profile include:

  • Providing complete protection even under excessive vibrations
  • Protecting sealed components from the effects of moisture and humidity
  • Leaving behind no silicon oil residues during application or removal
  • Non-hazardous, environment friendly sealing

A Versatile Environmental Seal for Original Equipment Manufacturers (OEMs)

Due to the innovative blend of polyurethane and aluminum, the HI-TAK polyurethane conductive antenna gasket system is great for diverse industrial applications. Users can also apply it to the following components to prevent corrosion:

  • Lights
  • Sensors
  • Probes
  • Hardware Assemblies

Customizable Gasket Options for Unique Applications

Av-DEC has dedicated over two decades to developing innovative gasket systems for diverse aviation applications. Over this period, Av-DEC have produced over a thousand different antenna footprints. In the event users do not find a sealing system that meets their unique requirements, Av-DEC can design a custom solution that suits the customer application. The end product will be a durable, functional gasket that integrates user-required industry standards.
