Thixoflex® Orange (TF2219) & Thixoflex® Gray (TG2010 or TG8498)

Thixoflex Gray
Thixoflex Gray
Thixoflex Gray
Thixoflex Gray
Thixoflex Gray
Thixoflex Orange
Thixoflex Gray
Thixoflex Gray
Thixoflex Gray
Thixoflex Gray
Thixoflex Gray
Thixoflex Orange
  • Two-component cure-in-place polyurethane material provides a high degree of environmental protection with maximum sealing
  • Watertight and flexible sealants designed to withstand the harshest operating environments
  • Thixotropic design enables easy application with no run or drips on vertical or overhead areas
  • Aesthetically pleasing sealant that waterproofs a variety of surfaces and protects structures from wear
  • Lasting cohesion means easy repair and clean removal long after first application
  • For applications where a thicker product is required, Thixoflex Gray is available in a 2:1 flame retardant (FR) or non-FR formulation

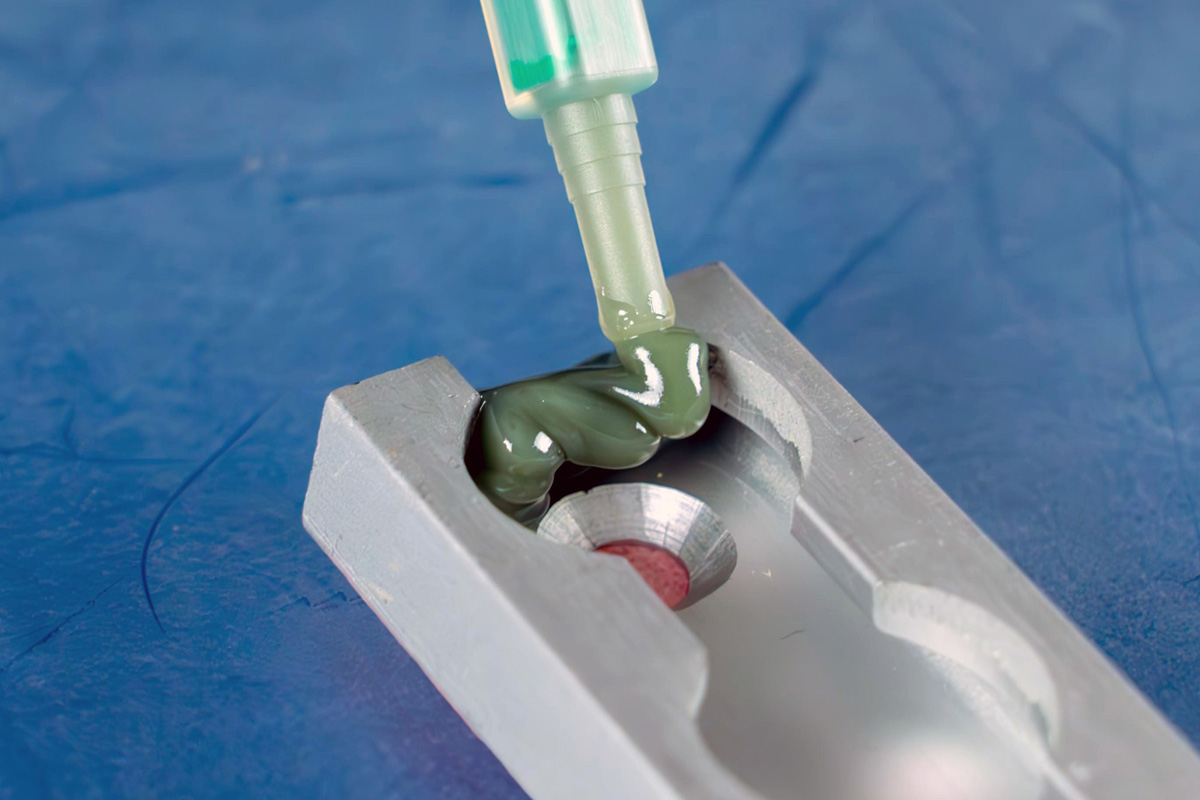

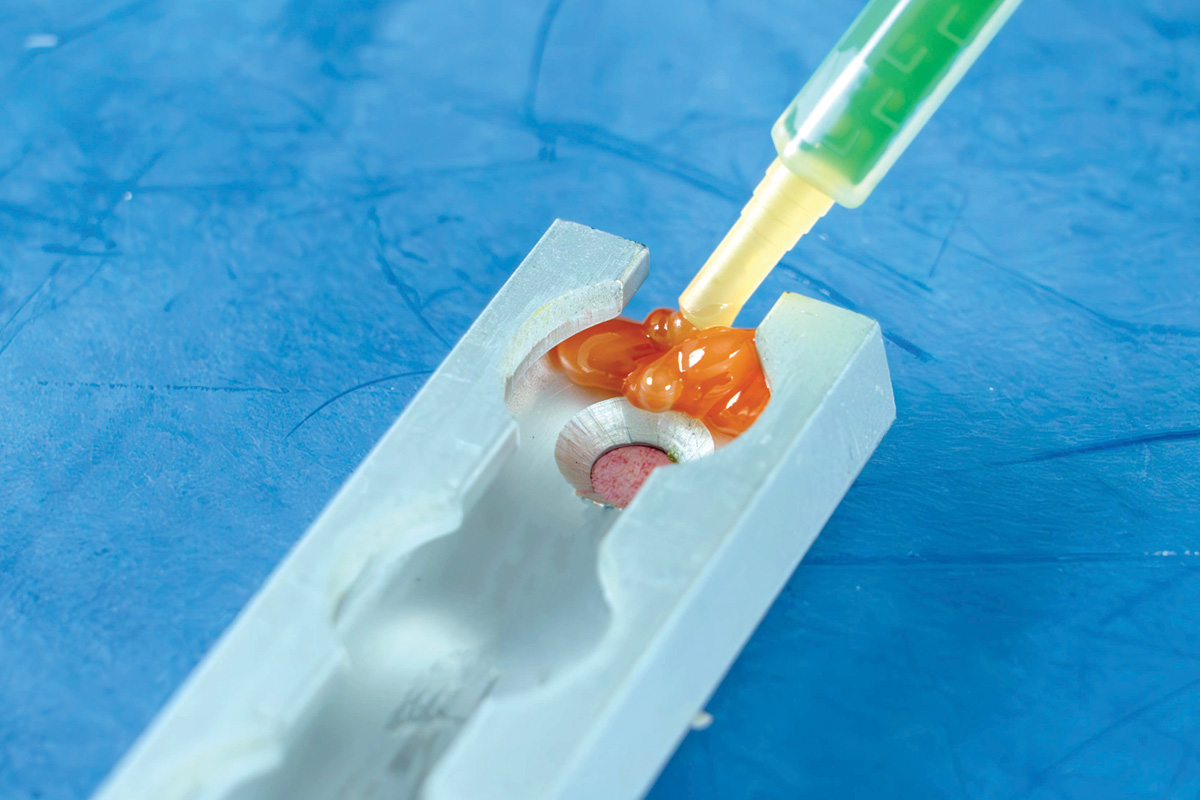

COMMON USES: • Fill Gaps and Voids • Perimeter Seal Recessed Screw Heads • Overhead or Vertical Applications • Wet Install Fasteners

Product Specifications

Injectables
Thixoflex® Orange
Thixoflex® Gray 1:1
Thixoflex® Gray 2:1
Thixoflex® Gray Delayed Gel
Part Number - 50cc
TF2219-50
TG8498-50
TG2010-50
TG8498DG-50
Part Number - 200cc
TF2219-200
TG8498-200
TG2010-200
TG8498DG-200
Color, properly mixed
Orange
Gray
Gray
Gray
Reaction Ratio - by volume
100 : 100
100 : 100
100 : 200
100 : 100
Specific Gravity, mixed, at 77°F/25°C (Calculated)
0.99 to 1.05
0.97 to 0.99
1.06 to 1.09
0.97 to 0.99
Viscosity, resin, Cps. at 77°F/25°C (ASTM D2556)
80000 to 180000
200000 to 500000
50000 to 135000
200000 to 500000
Viscosity, hardener, Cps. at 77°F/25°C (ASTM D2556)
80000 to 180000
120000 to 300000
60000 to 170000
120000 to 300000
Working Life at 77°F/25°C
< 3 minutes
< 3 minutes
< 4 minutes
< 12 minutes
Gel Time, 10 g Mass at 77°F/25°C (ASTM D7997)
< 7 minutes
< 7 minutes
< 10 minutes
< 25 minutes
Shelf Life - in original packaging and stored above at 55°F/13°C
Nine months
Nine months
Nine months
Nine months
Storage Temperature
> 55°F/13°C
> 55°F/13°C
> 55°F/13°C
> 55°F/13°C
Service Temperature Guide (RTCA DO-160G, Section 5, 2 cycles)
-85°F to 275°F/-65°C to 135°C
-85°F to 275°F/-65°C to 135°C
-85°F to 275°F/-65°C to 135°C
-85°F to 275°F/-65°C to 135°C
Application Temperature
> 55°F/13°C
> 55°F/13°C
> 55°F/13°C
> 55°F/13°C
Hardness, Shore "OO" at 77°F/25°C @ 24 hrs (ASTM D2240)
> 55
> 60
> 50
> 60
Dielectric Strength (ASTM D149 Method A)
> 375 V/mil
> 400 V/mil
> 400 V/mil
> 400 V/mil
Tensile Strength (ASTM D412)
> 80 PSI
> 60 PSI
> 190 PSI
> 60 PSI
Elongation (ASTM D412)
> 140%
> 140%
> 30%
> 140%

PDF Documents to Download, View & Print

National Stock Numbers (NSN)

Av-DEC P/N
Av-DEC NSN
Description
Application
Category
TF2219-200
8030-01-494-7677
Thixoflex Orange, 200cc
All Air Frames
2-Part Sealants
TF2219-50
8030-01-494-7677
Thixoflex Orange, 50cc
All Air Frames
2-Part Sealants
TG2010-50
6850-01-504-8136
2:1 Thixoflex Gray, 50cc
All Air Frames
2-Part Sealants
TG2010FR-50
6850-01-577-8134
Flame Retardant 2:1 Thixoflex Gray, 50cc
All Air Frames
2-Part Sealants
TG8498-200
8030-01-572-5219
1:1 Thixoflex Gray, 200cc
All Air Frames
2-Part Sealants
TG8498-50
6850-01-494-9651
1:1 Thixoflex Gray, 50cc
All Air Frames
2-Part Sealants
TG8498DG-200
Thixoflex Gray Delayed Gel, 200cc
All Air Frames
2-Part Sealants
TG8498DG-50
Thixoflex Gray Delayed Gel, 50cc
All Air Frames
2-Part Sealants

Flexible Two-Part Thixotropic Polyurethane Environmental Seal

The flexible two-part thixotropic polyurethane environmental seal that delivers enhanced protection, waterproofing and an exceptional finish with every application.

Av-DEC Thixoflex Orange and Thixoflex Gray ensure durability, enhanced adhesion, and increased resistance to abrasion when applied as an environmental seal. Take advantage of the enhanced protection of Av-DEC two-component sealing formula to protect aircraft surfaces and avionics from corrosion. Thixoflex Orange and Thixoflex Gray are thixotropic flexible sealants. They provide a semi-solid seal over the area of application and do not lose shape under less than ideal situations. They are highly resistant to thermal fluctuations and moisture which makes them great choices for protecting assembly edges, fasteners, and susceptible surfaces.

Choose Av-DEC Thixoflex Orange and Thixoflex Gray as general-purpose sealants due to their exceptional features and benefits. These include:

  • A high resistance to wear and tear, which protects surfaces and edges that experience constant traffic or use.
  • High resistance to shrinkage, which ensures the semi-solid environmental sealants provide optimal protection against corrosion.
  • Quick cure rate which ensures they can be applied on vertical surfaces without losing surface bonding capacity during application.
  • Easy installation process and a simple removal procedure which eliminates residues and speeds up repair tasks.
  • A highly durable barrier against moisture, which provides great environmental sealing across diverse industries.
  • Either sealant adheres to itself at varying temperatures, which makes it the perfect choice for handling multiple repairs within a specific area.

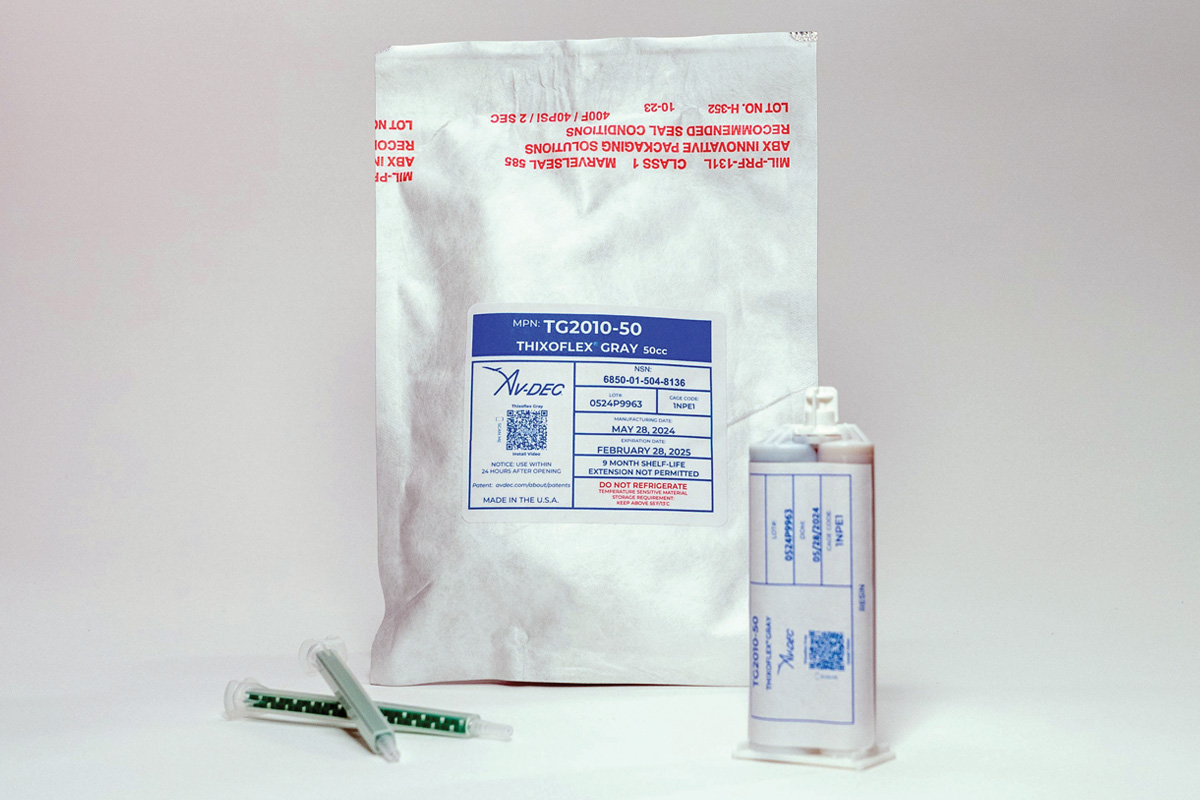

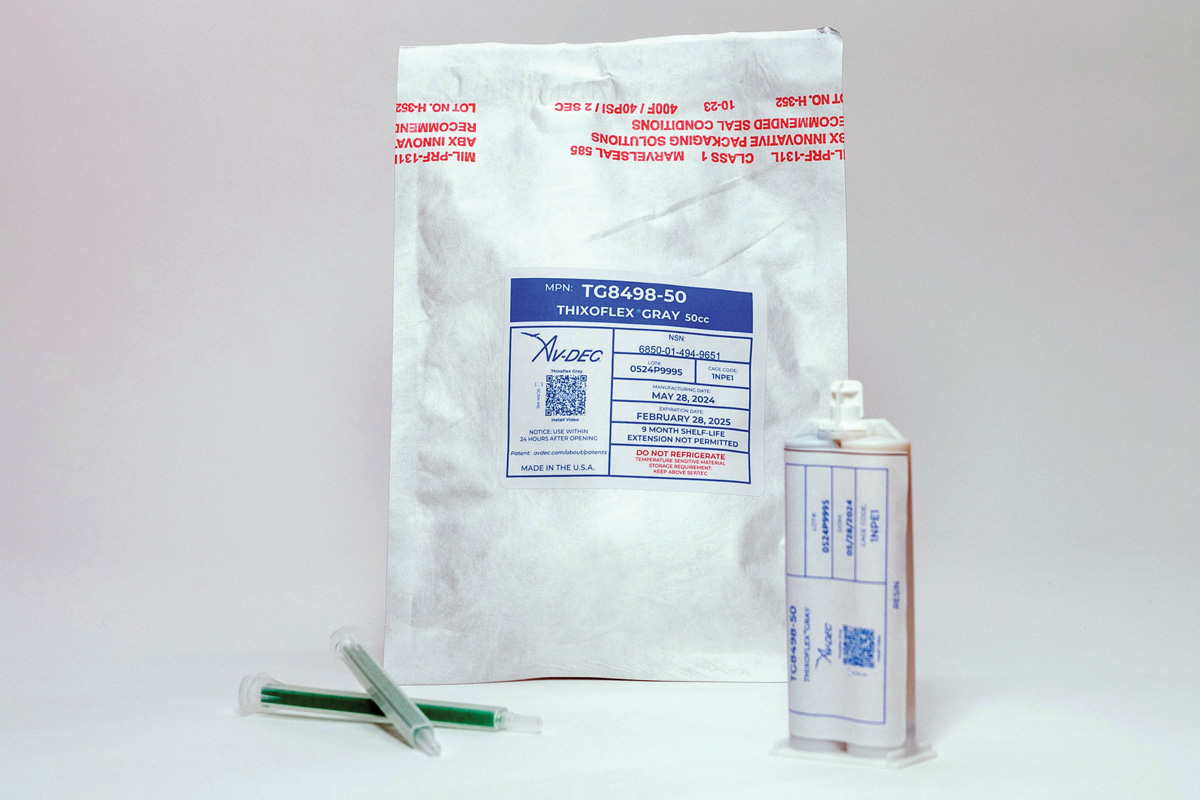

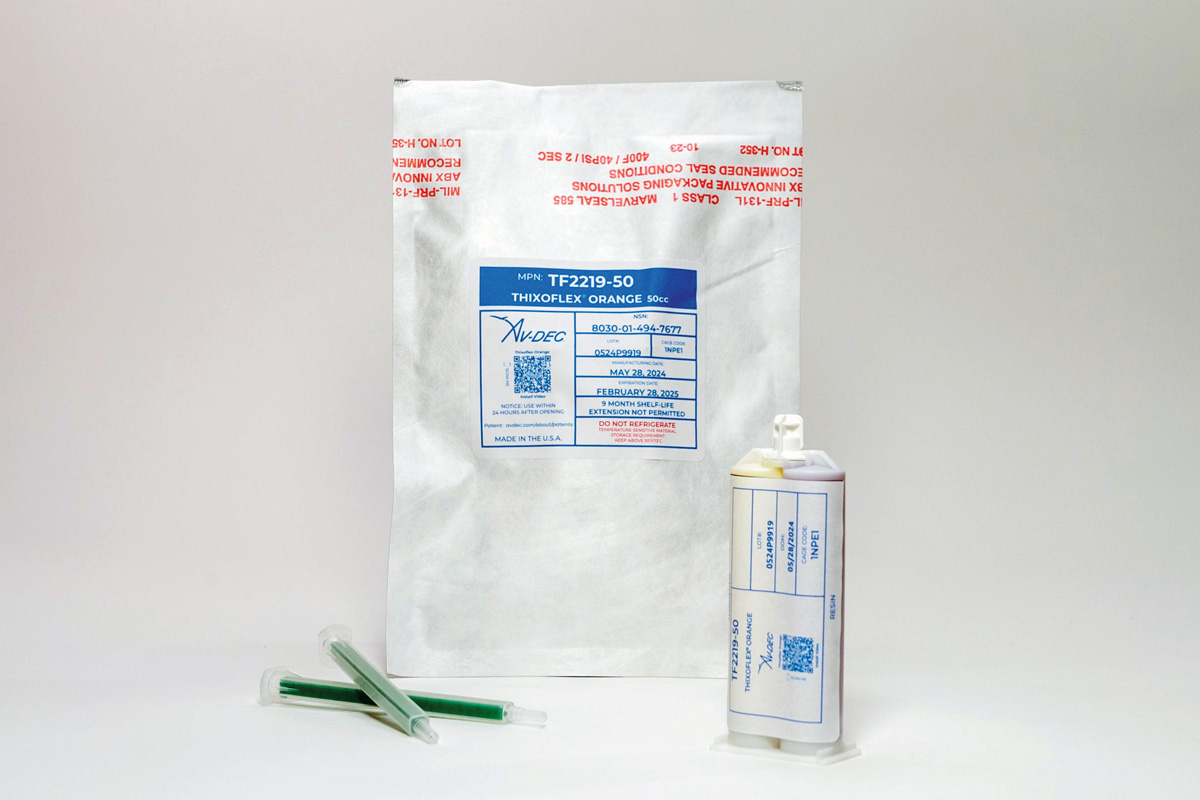

Av-DEC Thixoflex Orange and Thixoflex Gray are non-hazardous injectable sealants. The sealants are delivered in either a 50cc or 200cc cartridge -depending on choice- with two mixing straws, and a reusable dispenser is also available.

A Thixotropic Sealing Formula for Unconventional Applications

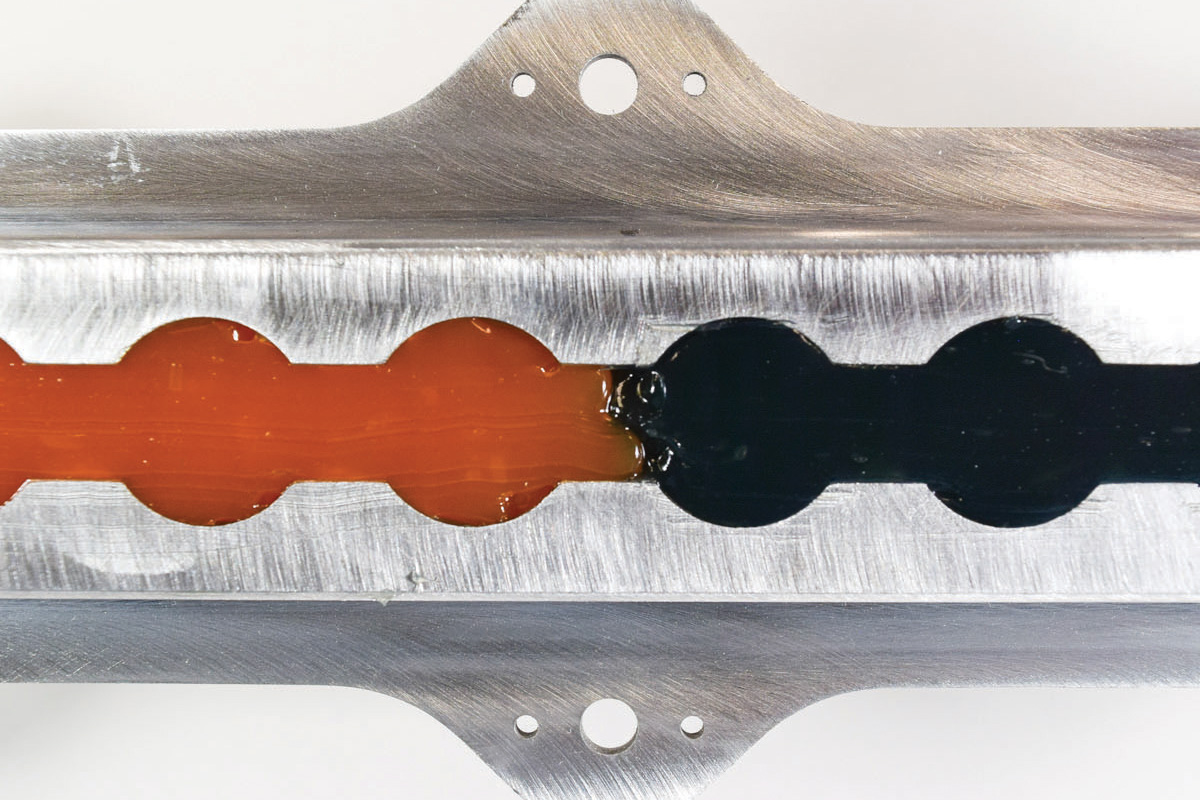

Av-DEC selection of two-part corrosion-inhibiting injectable sealants offers more options than other competing injectable sealants. The Thixoflex Orange and Thixoflex Gray formulas are thixotropic sealants that can fill cracks, cavities, and joints to waterproof an assembly and prevent corrosion. When applied, the sealant forms a semi-solid state which makes it applicable on vertical and overhead surfaces, unlike other sealing options. The benefits gained from using Av-DEC thixotropic sealing formulas include:

  • Delivering higher bonding and thickness levels making it waterproof, which eliminates moisture ingress.
  • Ideal for use on vertical surfaces and hard-to-reach places such as internal joints or structures thereby inhibiting corrosion in these surfaces.
  • Can be applied on multiple surface materials including metal, painted surfaces, and wood* which makes it a general-purpose environmental seal.
  • It can be used as a protective seal on unconventional places such as tilt-up walls, angled structures, windows, and pre-cast panels.

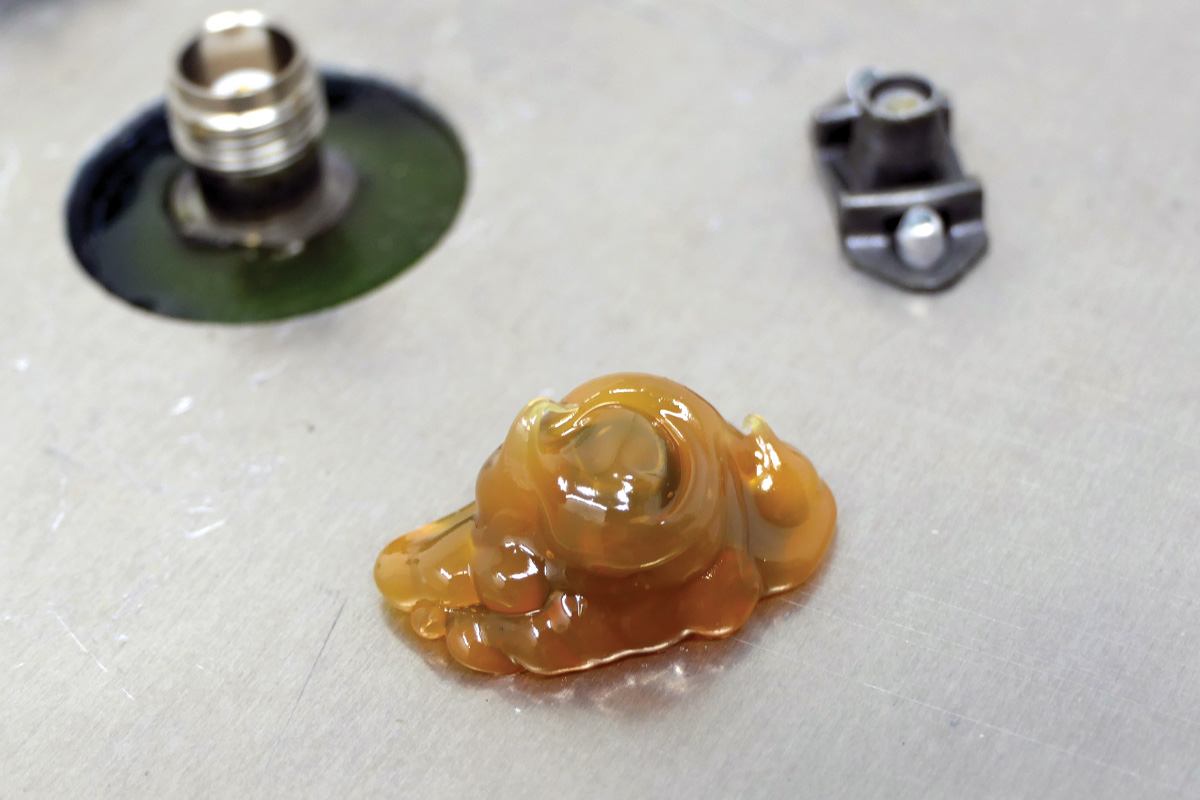

Wet Installing Fasteners

A majority of the fasteners applied in aircraft manufacturing, maintenance, and installations are installed wet. To successfully accomplish the installation of fasteners using sealants, the right sealant and some experience are needed. Provides complete sealing and protection when installing rivets or bolts. The advantages of the installation process include:

  • Protecting critical areas from the effects of corrosion.
  • Protects the aircraft from moisture that can penetrate joints and other assemblies.
  • Speeds up the installation process of fasteners and other components in the aircraft.

Two-Part Polyurethane Environmental Seal that Delivers an Exceptional Finish

Av-DEC Thixoflex Orange and Thixoflex Gray each function as a two-component polyurethane sealant. This means these injectable sealants integrate the flexibility, semi-hardness, and abrasion-resistant nature of polyurethane. When applied on surfaces, joints, or voids, the respective sealants form an orange- or gray-colored semi-solid which offers enhanced protection against corrosion, but it doesn't stop there. The end product is a glossy orange or gray semi-solid that adds to the aesthetic appeal of the entire surface. Some of the benefits from using this two-part polyurethane sealant include:

  • A non-hazardous polyurethane formula which ensures its application does not emit volatile organic components in closed spaces.
  • Choice of sealant according to color requirements which adds to the aesthetic appeal of the sealed surface.
  • Its color option and odorless nature make it a versatile and non-offensive sealant.

General Purpose Injectable Sealant for Diverse Applications

The quick cure times, durability, and color scheme of Thixoflex Orange and Thixoflex Gray mean they can be applied in a variety of ways across diverse industrial niches. Although designed for the aviation industry, they can be used as sealants to assist other sealing or repair systems in industries such as:

  • Aviation
  • Automotive
  • Engineering
  • Plumbing
  • Architecture

Av-DEC offers 50cc polyurethane injectable sealant cartridge to qualified parties. Take advantage of this offer for personal evaluation and usability reviews by contacting us today.
