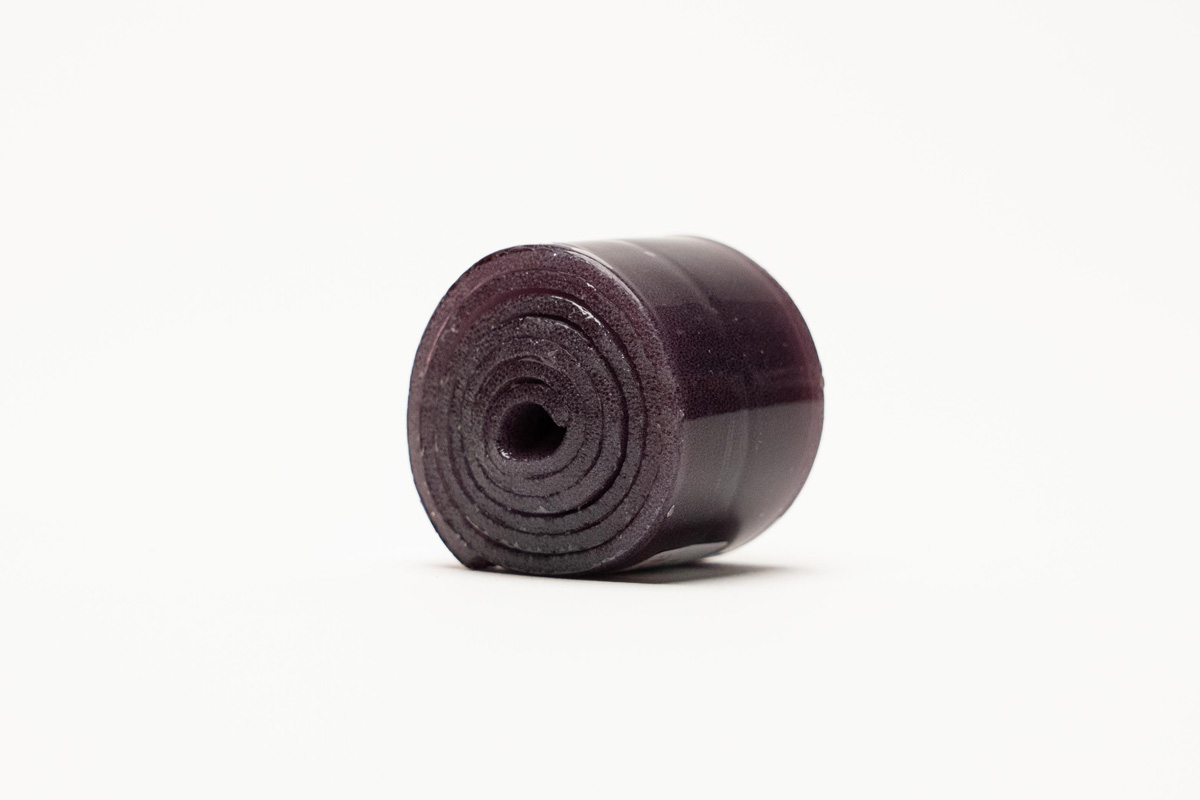

AD89503 or AD89513 HI-TAK StretchSeal

  • Stretchable foam, impregnated with Av-DEC polyurethane, designed for sealing and moisture-proofing
  • Flexible yet cohesive nature provides excellent environment seal when applied around mated connectors

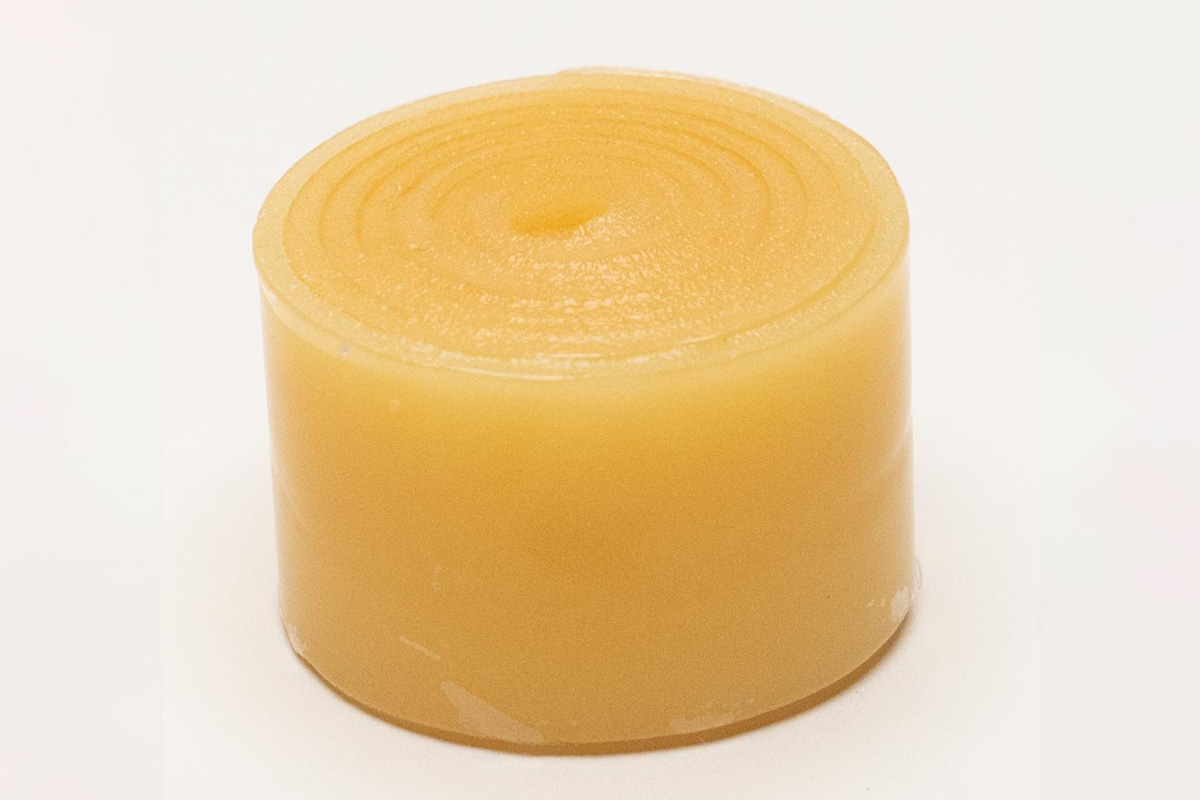

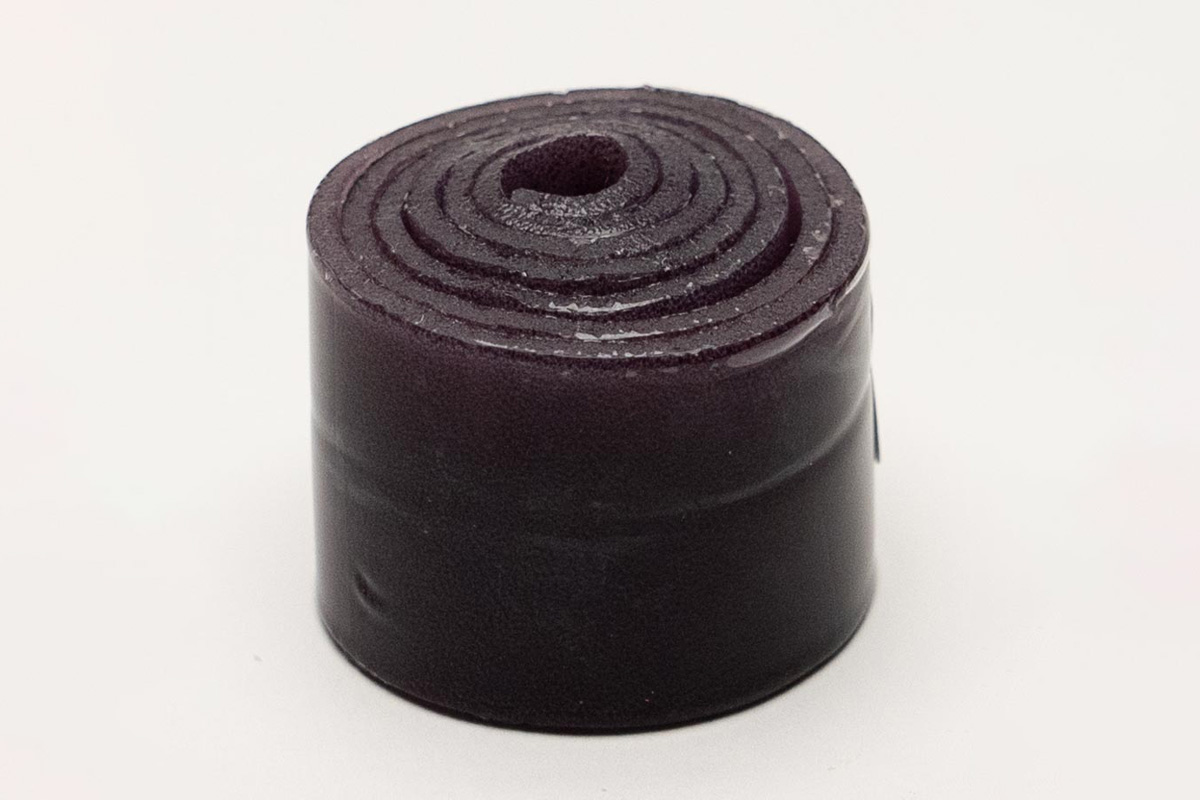

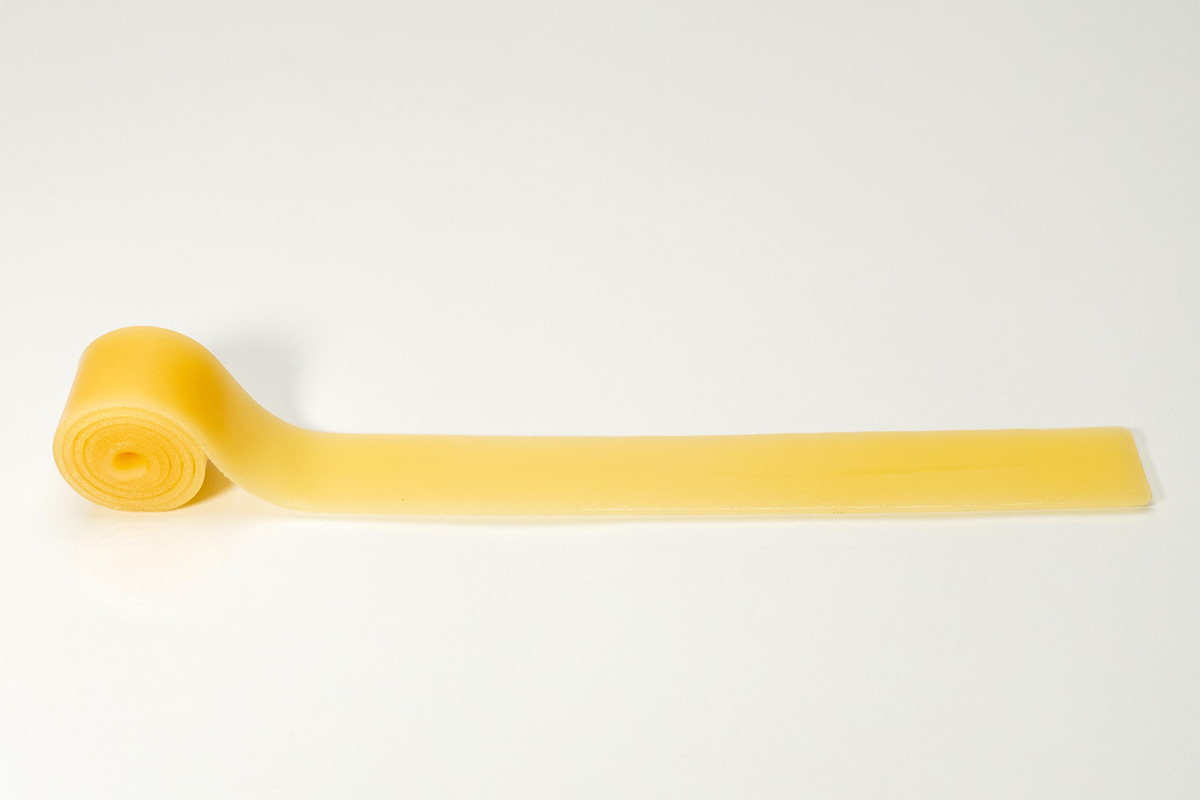

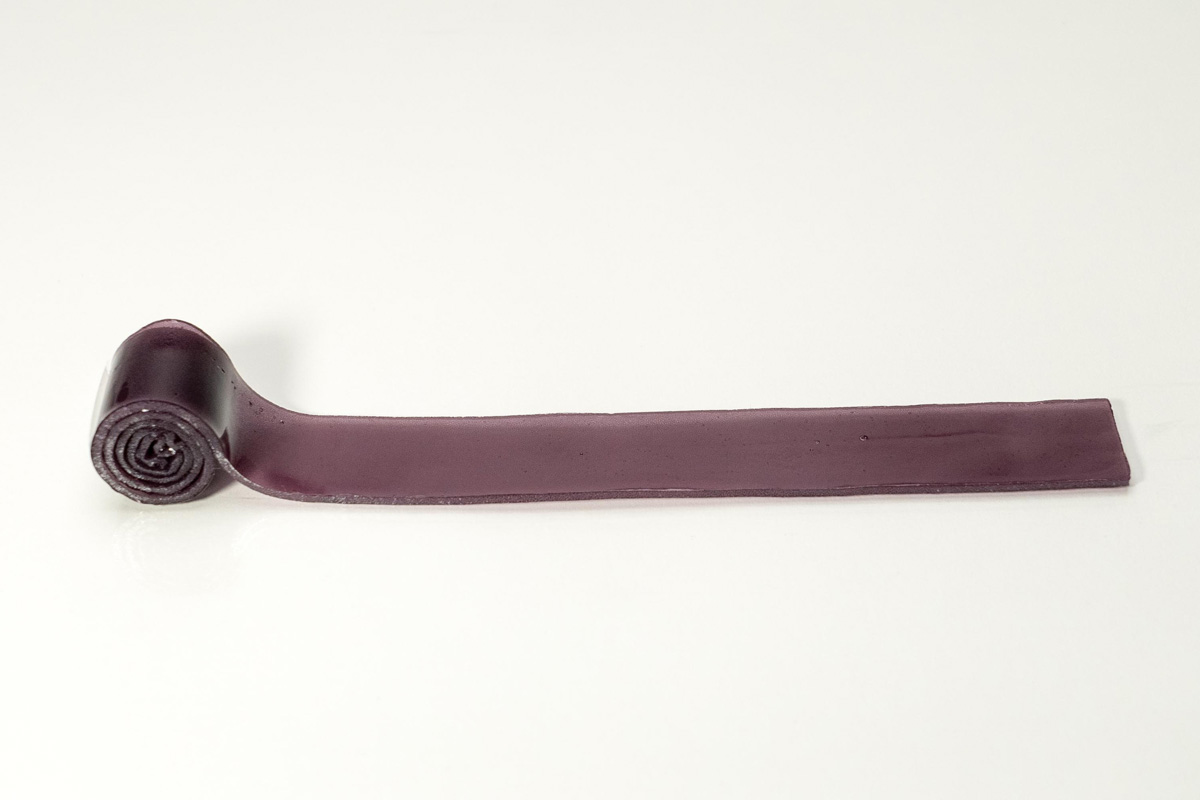

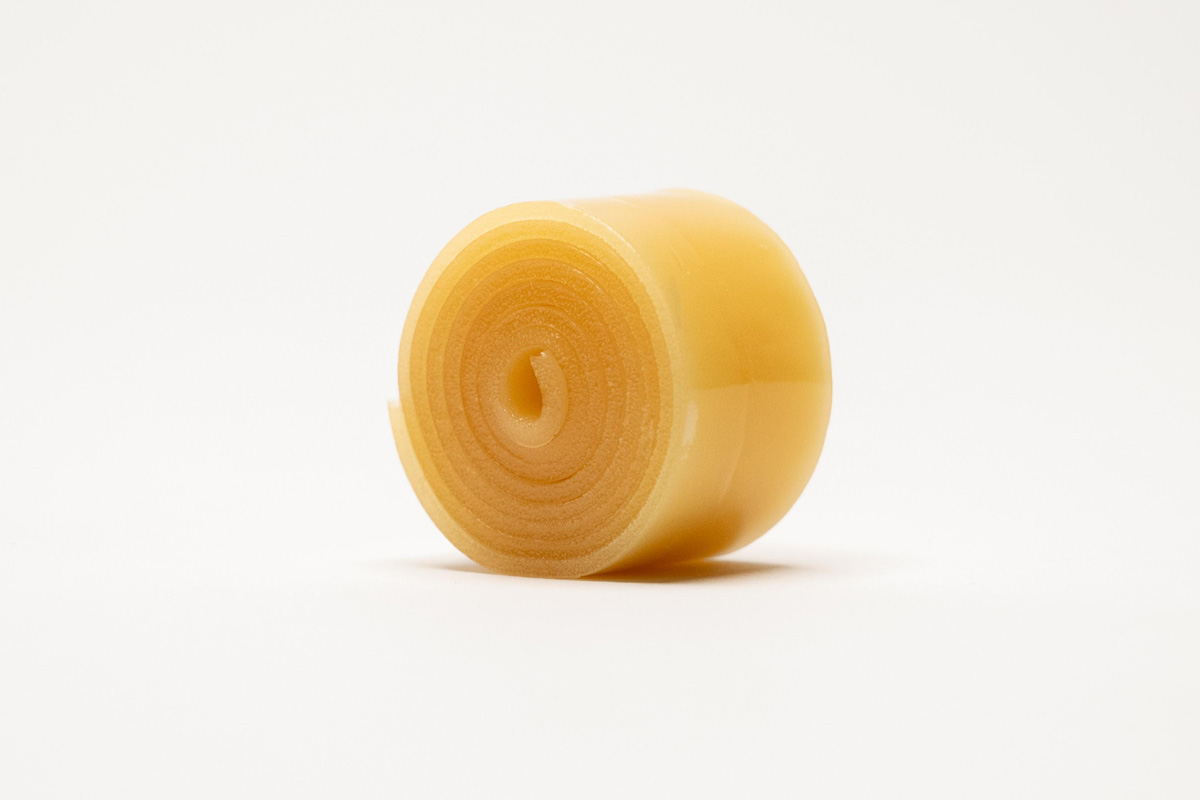

  • Available in a single-sided tacky configuration with a polyurethane protective film (AD89513-XX-YY) or a double-sided tacky option (AD89503-XX-YY)
  • Reduces water ingress and corrosion, lowering corrosion-related costs
  • Available in multiple widths (0.5", 1.0", 1.5", 2.0") and lengths (yy)
  • EN110589 Connector Sealing Kit includes AD89513-XX-YY and ties
COMMON USES: • Around Mated Electrical Connectors • Connector Back Shells • Coaxial Connectors • Circumferential and Irregular Surfaces

Product Specifications

Rolled Sealants
HI-TAK StretchSeal
Part Number Series
AD89503-XX-YY
Color
Plum
Thickness (as supplied)
0.07 in (1.78mm)
Width (-XX)
01 = 1"
02 = 0.5"
03 = 2"
04 = 1.5"
Length (-YY)
12 = 12"
18 = 18"
24 = 24"
36 = 36"
Shelf Life, sealed container
Indefinite
Reactivity, to typical aviation metallic and non-metallic surfaces
None - Product supplied fully cured
Service temperature guide per RTCA DO-160G, Section 5, 2 cycles
-85°F to 275°F (-65°C to 135°C)

PDF Documents to Download, View & Print

National Stock Numbers (NSN)

Av-DEC P/N
Av-DEC NSN
Description
Application
Category
AD27500-114
8030-01-502-7965
AD28500/18-18-8 + AD28500/12-12-8
All Air Frames
Connector Sealing
AD27500-115
8030-01-501-8539
AD28500/24-24-8 + AD28500/12-12-8
All Air Frames
Connector Sealing
AD27500-116
8030-01-502-4603
AD28500/36-36-8 + AD28500/12-12-8
All Air Frames
Connector Sealing
AD27500-117
8030-01-501-9454
AD28500/12-12-8
All Air Frames
Connector Sealing
AD27500-118
8030-01-532-9107
C-130 APU 6-AD28500/36-36-8, 2-HT3326-5-50
All Air Frames
Connector Sealing
AD27500-127
5330-01-519-2391
C-130 ALE-47 Connector Sealing Kit
All Air Frames
Connector Sealing
AD27500-139
5330-01-576-9174
AD28500-18-18-8
6850-01-502-2917
1" x 18" Dual Tape Connector Wrap
All Air Frames
Connector Sealing
AD28500-18-24-6
8030-01-520-8053
AD28500-18-36-8
8030-01-551-3130
Dual Tape Connector Wrap
All Air Frames
Connector Sealing
AD28500-24-24-8
8030-01-501-8538
1" x 24" Dual Tape Connector Wrap
All Air Frames
Connector Sealing
AD28500-36-36-8
8030-01-501-5351
1" x 36" Dual Tape Connector Wrap
All Air Frames
Connector Sealing
AD59163-01-36
8030-01-521-8853
1" x 36" Gray Self-Fusing Tape
All Air Frames
Connector Sealing
AD67700-109
5970-01-515-3644
Large Cone Boot, H-60 Yoke Assy.
All Air Frames
Connector Sealing
AD89503-01-18
1560-01-531-8365
1" x 18" HI-TAK Tape StretchSeal
All Air Frames
Connector Sealing
AD89503-01-24
8030-01-520-8054
1" x 24" HI-TAK Tape StretchSeal
All Air Frames
Connector Sealing
AD89503-01-36
8030-01-531-6541
1" x 36" HI-TAK Tape StretchSeal
All Air Frames
Connector Sealing
EN110589-01
6850-01-495-1842
1" x 7" x 0.065" Connector Wrap - Zip ties
All Air Frames
Connector Sealing
EN110589-02
8030-01-501-9455
1" x 12" x 0.065" Connector Wrap - Zip ties
All Air Frames
Connector Sealing
EN110589-03
5935-01-523-0057
1" x 7" x 0.065" Connector Wrap - Lacing string
All Air Frames
Connector Sealing
EN110589-04
5935-01-523-0063
1" x 12" x 0.065" Connector Wrap - Lacing string
All Air Frames
Connector Sealing

HI-TAK StretchSeal Single & Double-sided Polyurethane Rolled Sealants

Single and double-sided polyurethane-impregnated foam for the environmental and surface protection of aircraft structures.

The HI-TAK StretchSeal is a polyurethane rolled sealant (PRS) designed for surface and environmental protection applications in private, commercial, and military aircraft. It meets the corrosion-prevention requirements of original equipment manufacturers and service organizations and makes for an excellent choice when simplifying installation activities and handling maintenance or repair tasks. The PRS is very cohesive and can be used to protect irregular surfaces.

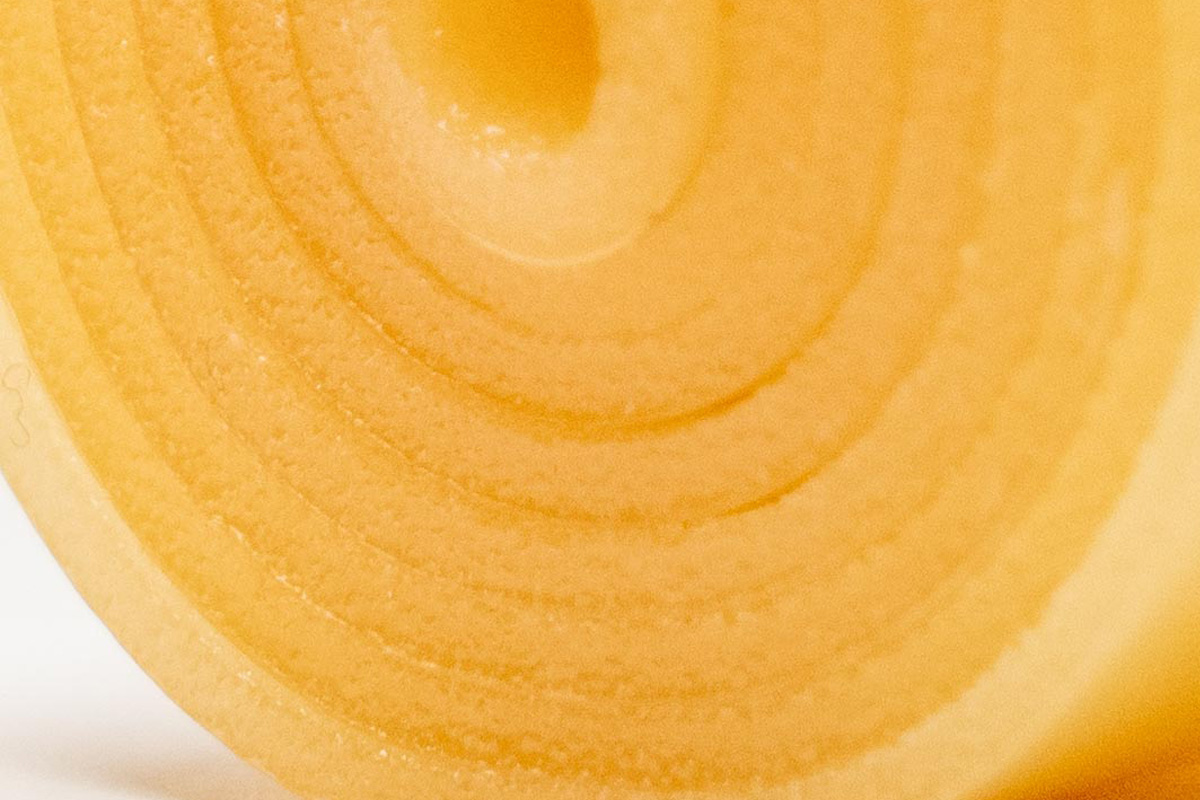

HI-TAK StretchSeal is polyurethane impregnated-foam that can be stretched across surfaces during application. This makes it a versatile sealing option for installation and maintenance activities. Upon application, users get complete protective seal against corrosion which works optimally even under fluctuating temperatures. Av-DEC offers two types of HI-TAK StretchSeal solutions for aviation applications. The first is a single-sided option, AD89513, with one tacky surface and Polytetrafluoroethylene (PTFE) backing. The second option, AD89503, is a two-sided PRS with tacky surfaces on both sides. Av-DEC HI-TAK StretchSeal has been successfully used to prevent moisture ingress and corrosion since its inception. Benefits to the use of these PRS products include the following:

  • A pre-cured polyurethane with excellent sealing properties, simplifying the task of applying or removing the PRS.
  • A durable sealant that provides complete protection for aircraft surfaces and structures functioning in extreme conditions for long durations.
  • A non-hazardous, environmentally friendly PRS sealant.
  • Indefinite shelf life when properly stored, allowing for immediate use without the need to worry about its sealing efficacy.

Delivers Complete Protection Against Corrosion

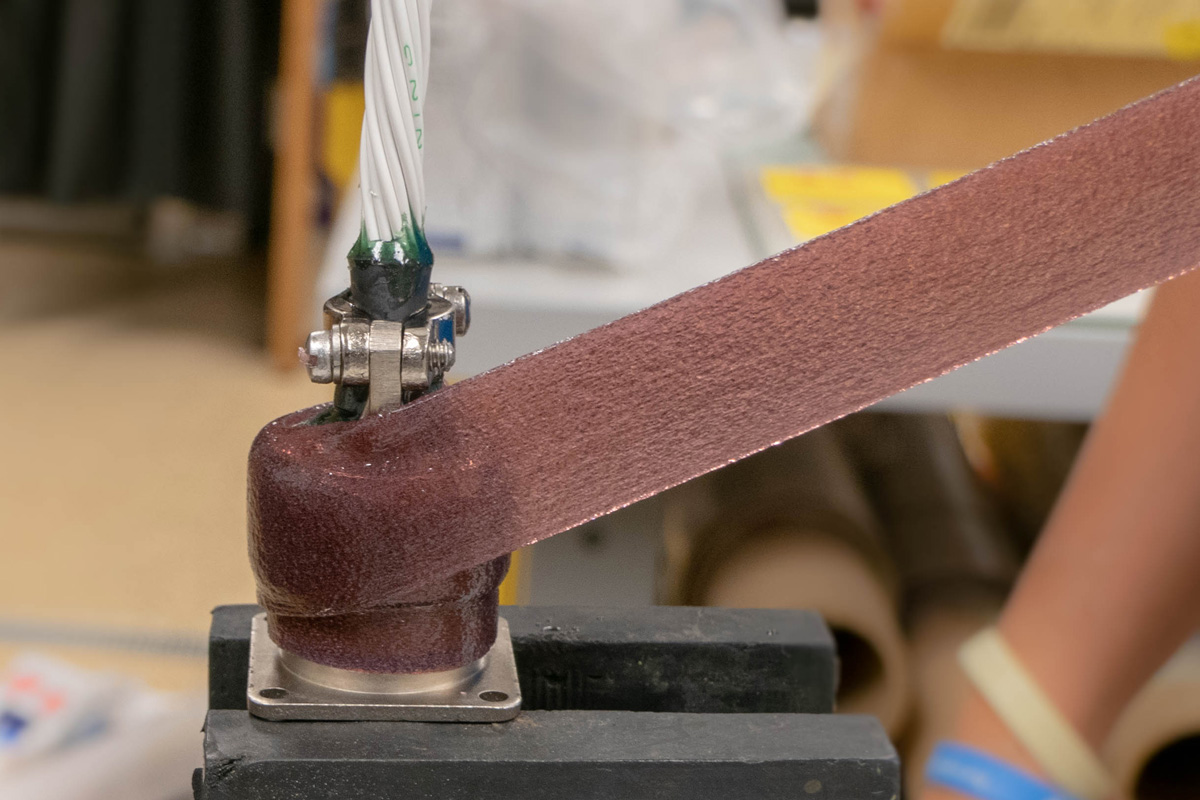

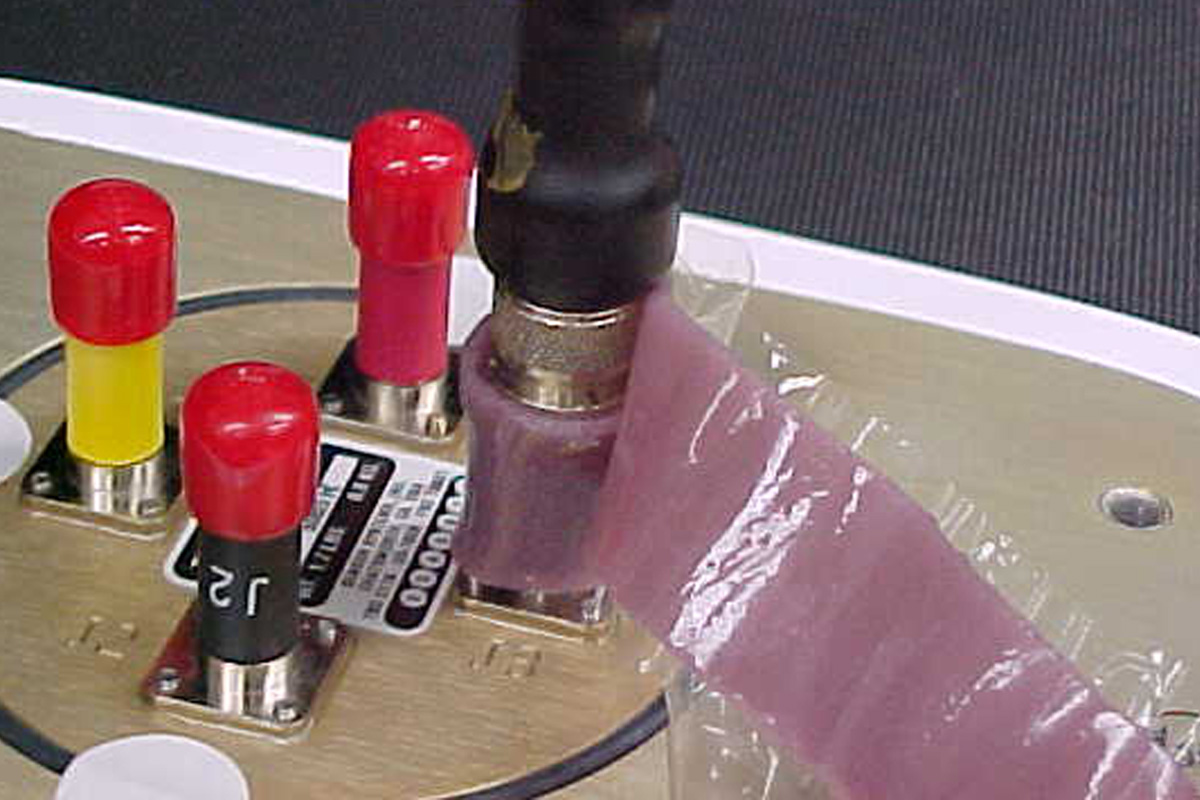

HI-TAK StretchSeal is made from a polyurethane-impregnated foam core, which gives it elastomeric features. During the application of this PRS product, we recommend that it be stretched by 25% to 50% of its original length. It will then form a complete compressed barrier against moisture and corrosion. Customer may choose whatever length and width best fits the applicable installation or maintenance specifications.

The exceptional adhesive nature of HI-TAK StretchSeal makes it a superb corrosion inhibitor for irregular surfaces, painted parts, and mated structures. The benefits of using an elastic PRS impregnated foam include:

  • Excellent cohesion and elasticity, creating a complete environmental seal against corrosion that is highly resistant to abrasion.
  • An increased lifespan for the protected structure and a drastic reduction in the costs attributed to repeated maintenance and repairs.
  • The removal process doesn't require the use of solvents or scraping equipment, leaving the protected surface free of residue and abrasions.

A Double-Sided PRS Option That Delivers Enhanced Protection

The Double-Sided PRS solution can be used as a sealant between aircraft assemblies. This totally blocks moisture from penetrating vulnerable spaces in an aircraft. Application of HI-TAK Double-Sided StretchSeal is done under compression. The seal it creates will not crumble under vibrations or extreme conditions.

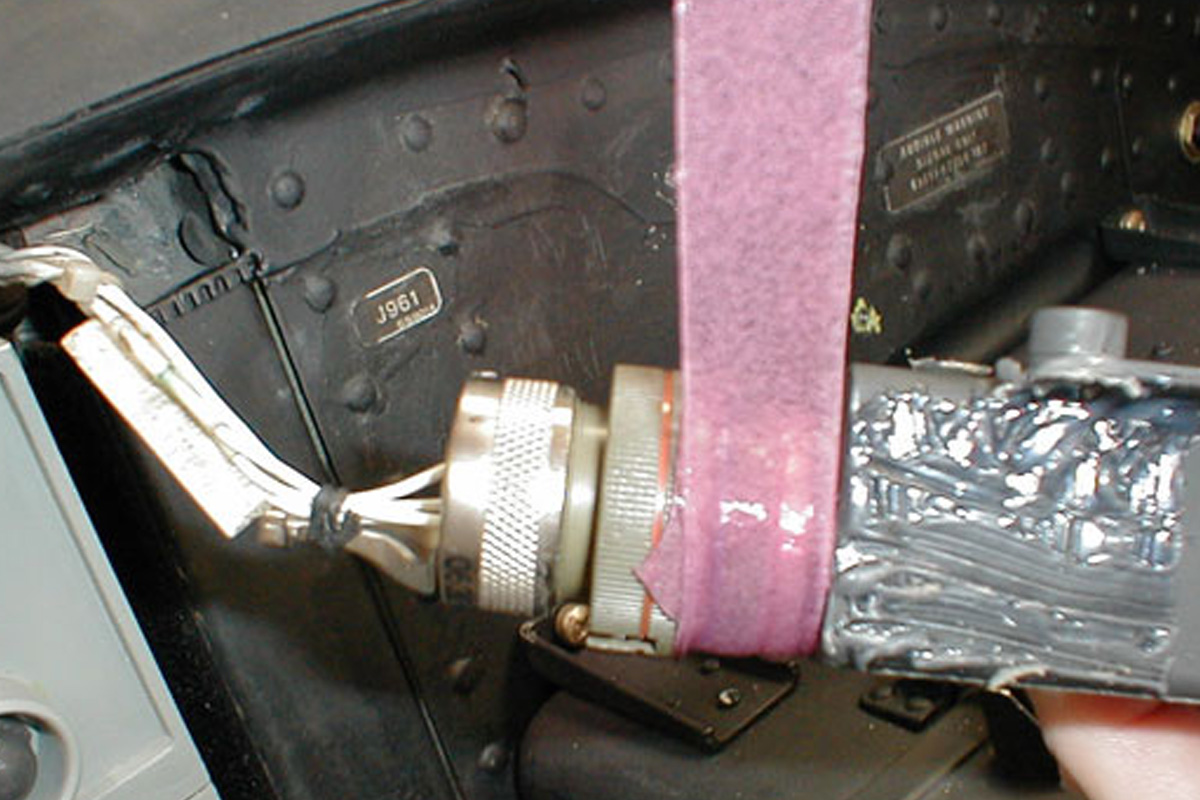

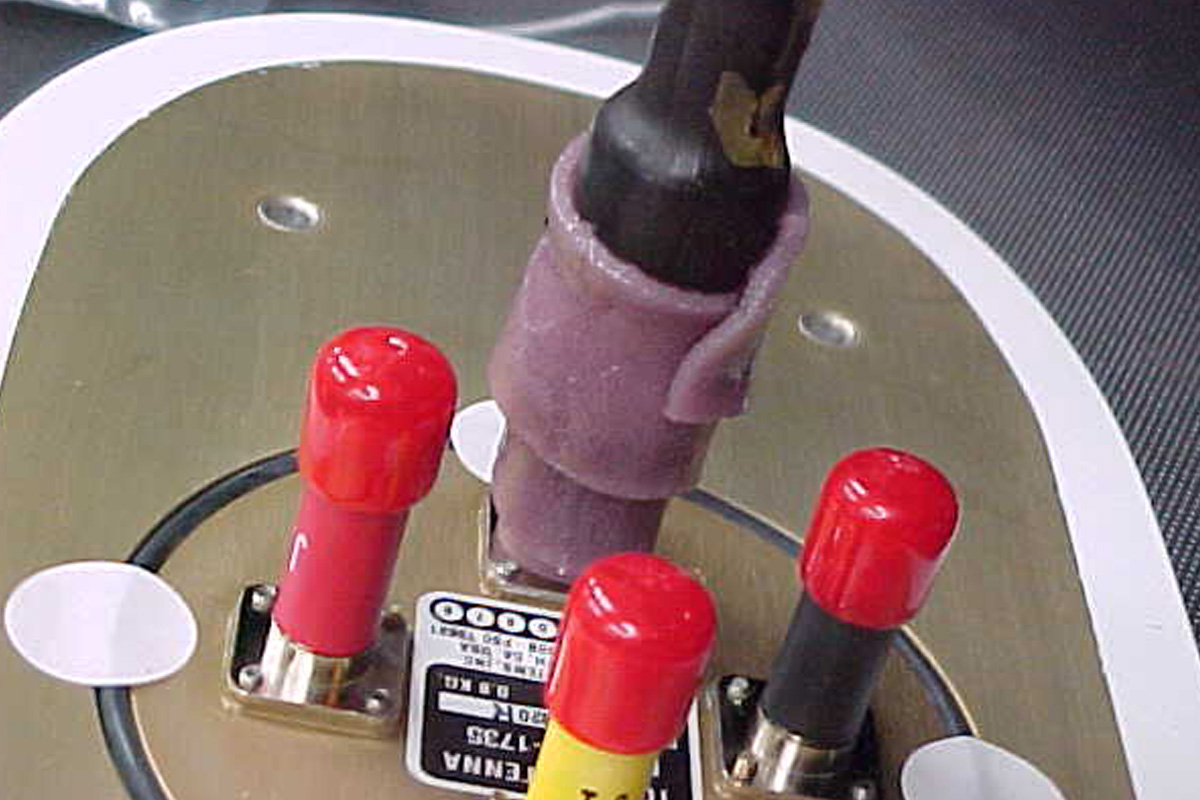

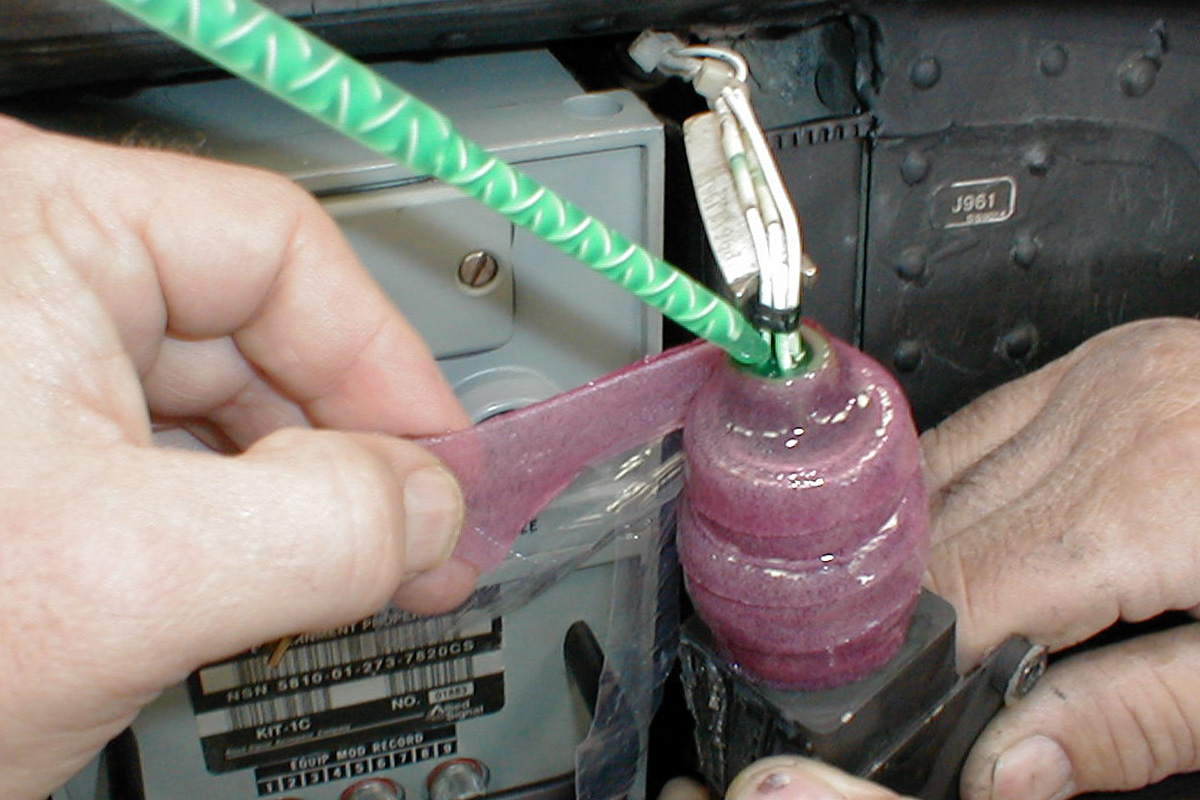

Use this PRS product to protect electrical connectors, coaxial connectors, and wire harnesses on aviation components. The advantages gained by applying the HI-TAK StretchSeal double-sided option include:

  • Developing a complete seal against moisture and corrosion when the space between two surfaces or structures must be protected.
  • It comprehensively protects harnesses and components when no drip loop exists.
  • When removed, both tacky surfaces leave behind no residue, ensuring that paint adhesion is unaffected.

Complements the Sealing Efforts of Other Sealants

HI-TAK StretchSeal can be used in conjunction with other sealing solutions such as the Self-Leveling Green. The benefits of using both sealing products in tandem include creating a complete seal against moisture during the installation of fasteners, cannon plugs, and wiring.

Diverse Aviation Applications

HI-TAK StretchSeal can be applied as a sealant during diverse installation, maintenance, and repair tasks. This effective PRS product can be used to form a moisture barrier on:

  • Electrical connectors
  • Irregular surfaces
  • Wire harnesses on components
  • Cargo bay areas
  • Door sills
